Product Description
1-1/4"-8 UN H6 4 Flute Spiral Pointed Combo Tap For Multi-Purpose Steam Oxide Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading

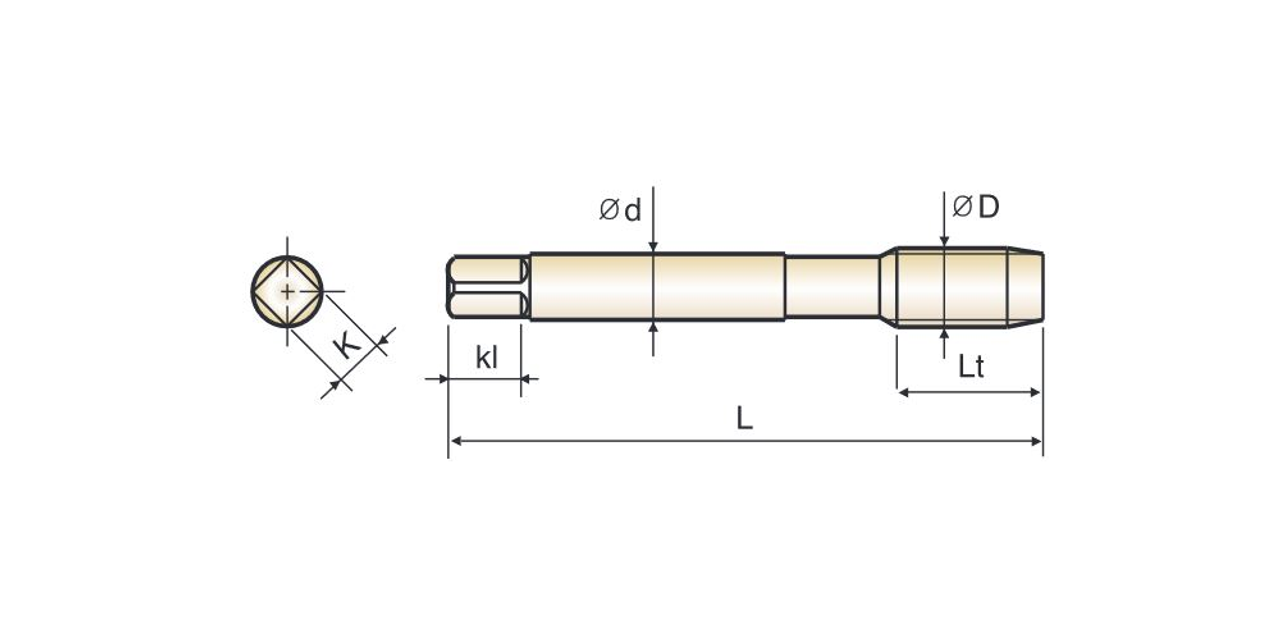

| Specs | ||
| OD | Thread Size | 1-1/4-8 |
| Od | Shank Diameter | 1.021" |
| Lt | Thread Length | 1.535" |
| L | Overall Length | 5.75" |
| K | Square Size | 0.766" |
| kl | Square Length | .1.000" |
| Flutes | 4 | |
| Limit | H6 | |
| Chamfer | 4P-5P | |
| Coating | Steam Oxide | |
Product Videos
Custom Field
Diameter 1-1/4-8
Length of Cut 1.535 in.
Overall Length 5.75 in.
Flutes 4 Flutes
Coating Steam Oxide
End Type Spiral Point
Type UN
Features H6 Limit
stock_level 8
