Product Description

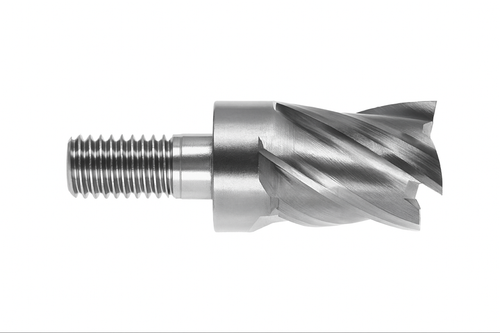

1-1/4" Diameter Square End 4 Flute Carbide 27°/30° Multi-Helix I-Smart Modular Milling Head, 1.772" Length Below Shank, M16 Thread

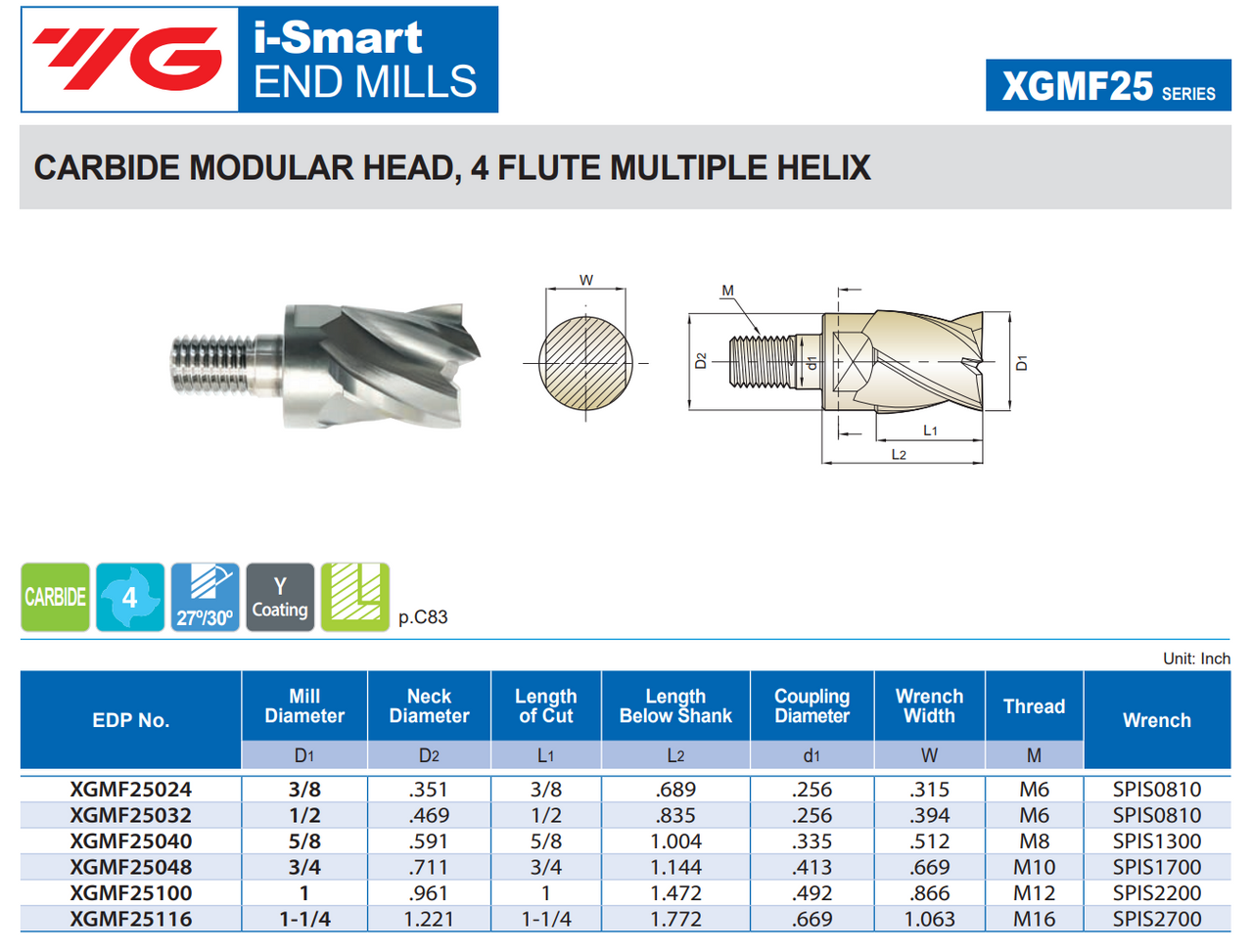

- YG-1 Series XGMF25: i-Smart Screw On Ultra-Micro Grain Carbide Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- 27°/30° Multiple Helix 4 Flute Square End
- Wrench Included With Each Holder

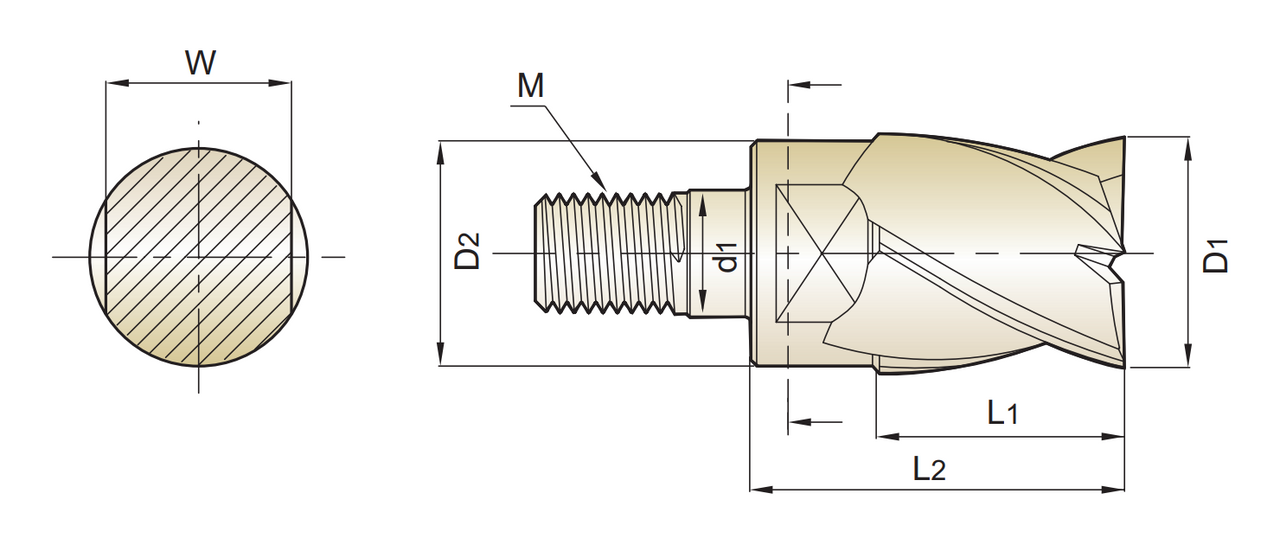

| Specs | ||
| D1 | Mill Diameter | 1-1/4 in. |
| D2 | Neck Diameter | 1.221 in. |
| L1 | Length of Cut | 1-1/4 in. |
| L2 | Length Below Shank | 1.772 in. |
| d1 | Coupling Diameter | .669 |
| W | Wrench Width | 1.063 |
| M | Thread | M16 |
| Wrench | SPIS2700 | |
Product Videos
Custom Field
Diameter 1-1/4 in.
Length of Cut 1-1/4 in.
Type Carbide Shank, Modular Cutter
Features M16 Threaded Connection
