Product Description

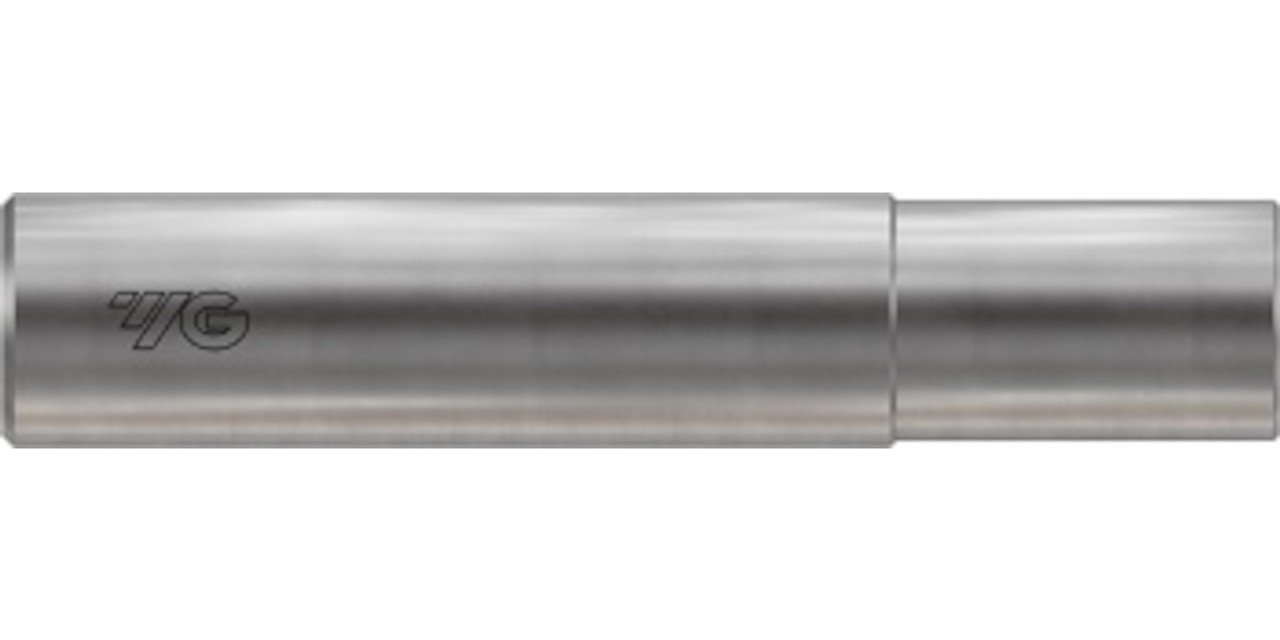

1-1/4" Extra Extra Long Length i-Smart Carbide Holder, Straight Neck, For Modular Milling Heads, 1-1/4" Shank, M16 Thread
- ZMC Series: i-Smart Carbide Holders, Straight Neck Type For Screw On Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- Coolant Hole Through The Shank
- Wrench Included With Each Holder
| Specs | ||
| Mill Diameter | 1-1/4 in. | |
| SD | Shank Diameter | 1-1/4 in. |
| L | Overall Length | 13-3/4 in. |
| L1 | Neck Length | 9-27/32 in. |
| D | Neck Diameter | 1-9/64 in. |
| M | Thread Size | M16 |
| Wrench No. | SPIS2700 | |
| Coolant Hole | 15/64 in. | |
Product Videos
Custom Field
Diameter 1-1/4 in.
Overall Length 13-3/4 in.
Type Carbide Shank, Modular Cutter
Features M16 Threaded Connection
