Product Description

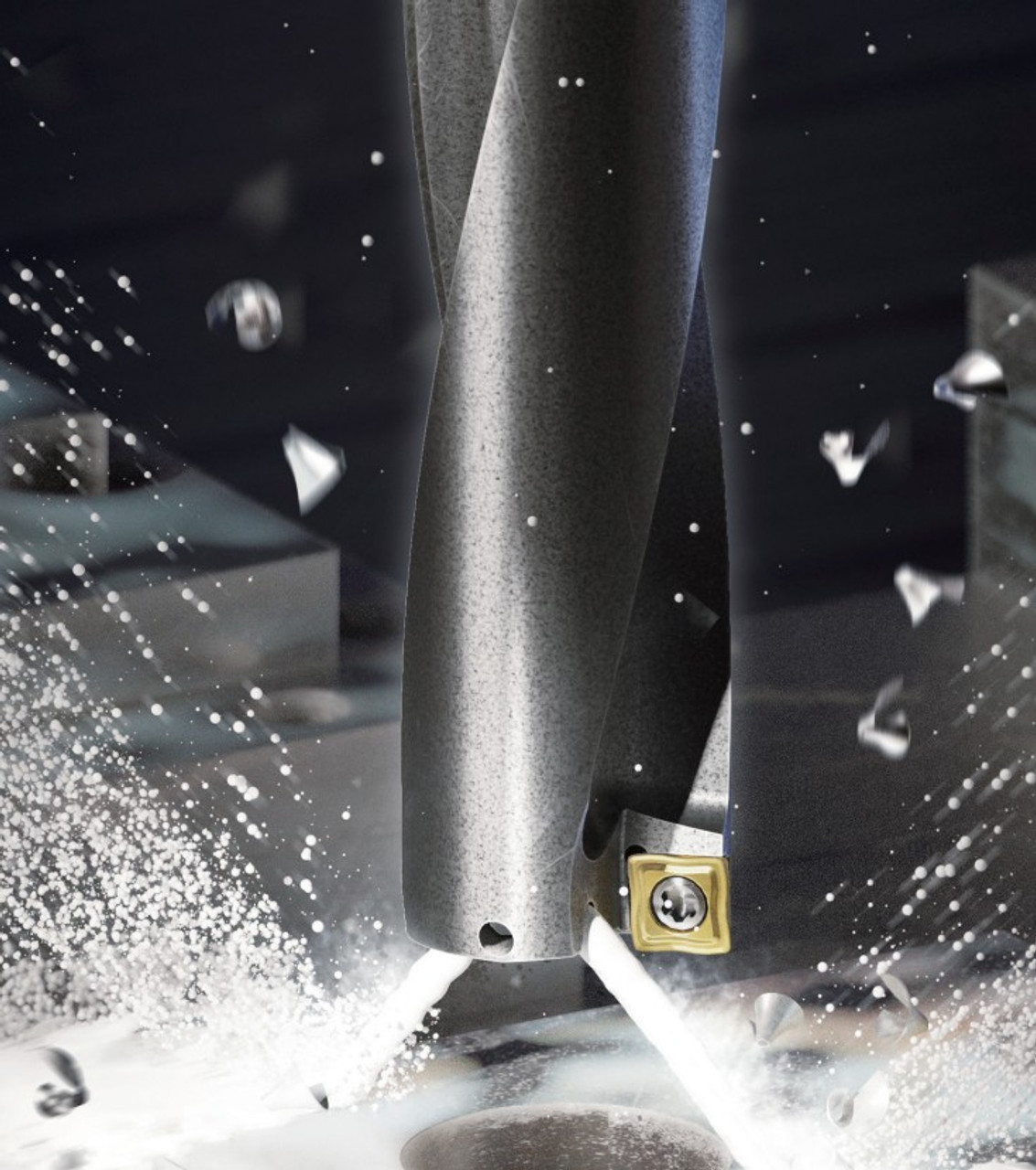

1.125" Diameter, 5XD, WCMX YG-1 Indexable Trigonal Drill Holder, Coolant Through
- Same insert used in inner and outer pocket

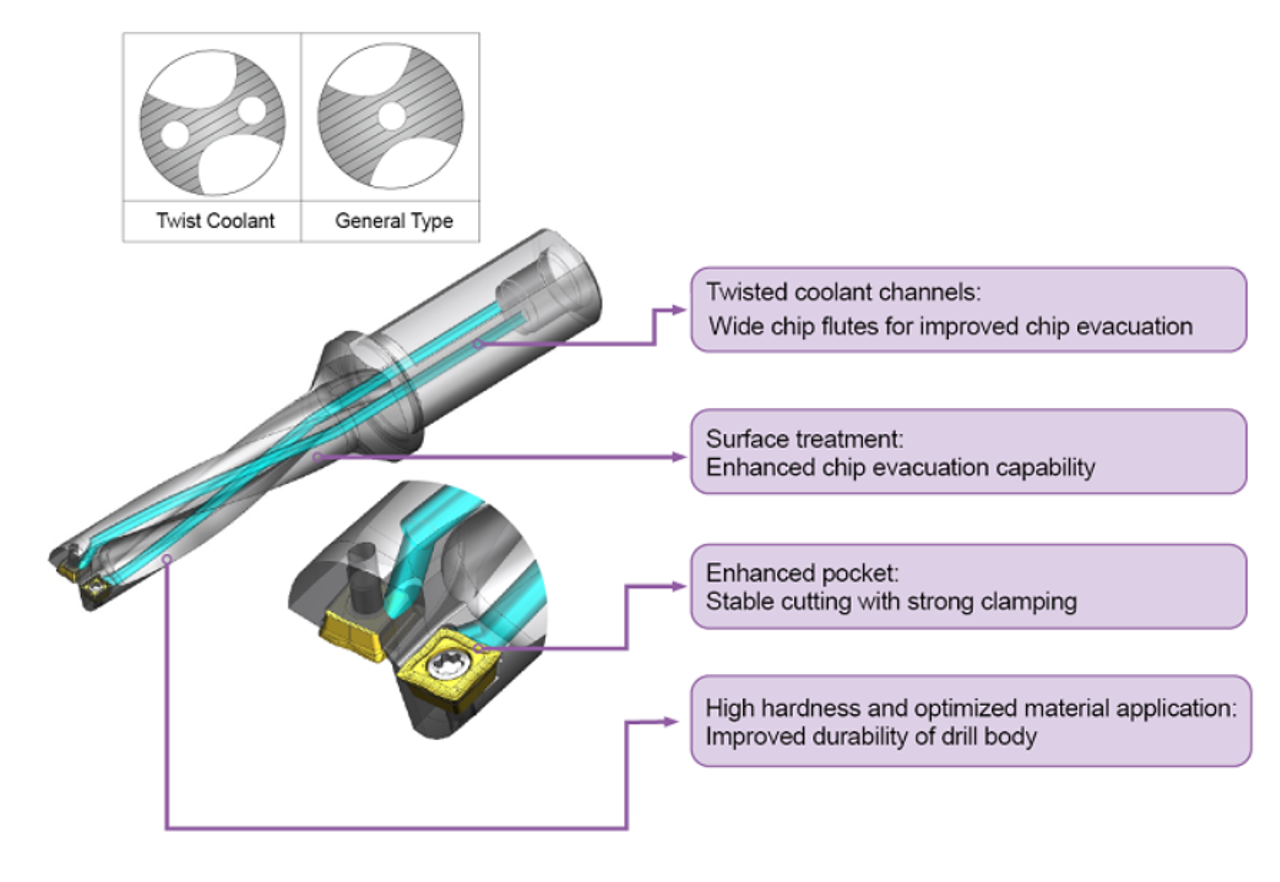

- Twisted coolant channel and enlarged chip gullet for better chip evacuation
- Highly durable drill body
- New post surface treatment flute enables to improved chip evacuation in deeper machining
- Unique 1 chip curl per each flute
Product Videos
Custom Field
Diameter 1.125 in.
Size WCMX05
Type Indexable Drill
Length of Cut 5XD - 5.61 in.
End Type 1.00 in. Shank
Features Thru-Coolant
stock_level 52
