Product Description

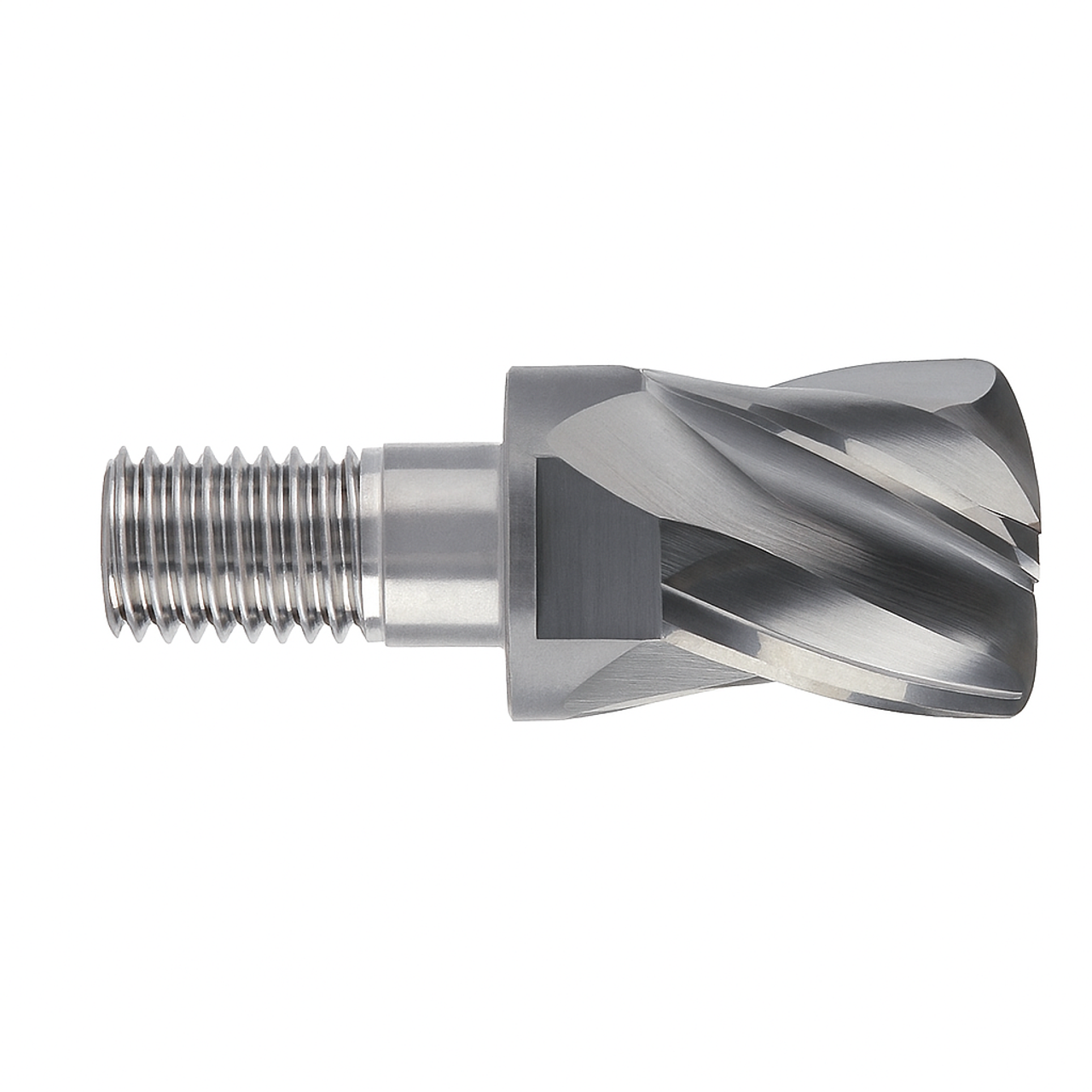

1/2" Diameter 4 Flute Carbide 27°/30° Multi-Helix I-Smart Modular Milling Head with .080 Corner Radius, .835" Length Below Shank, M6 Thread

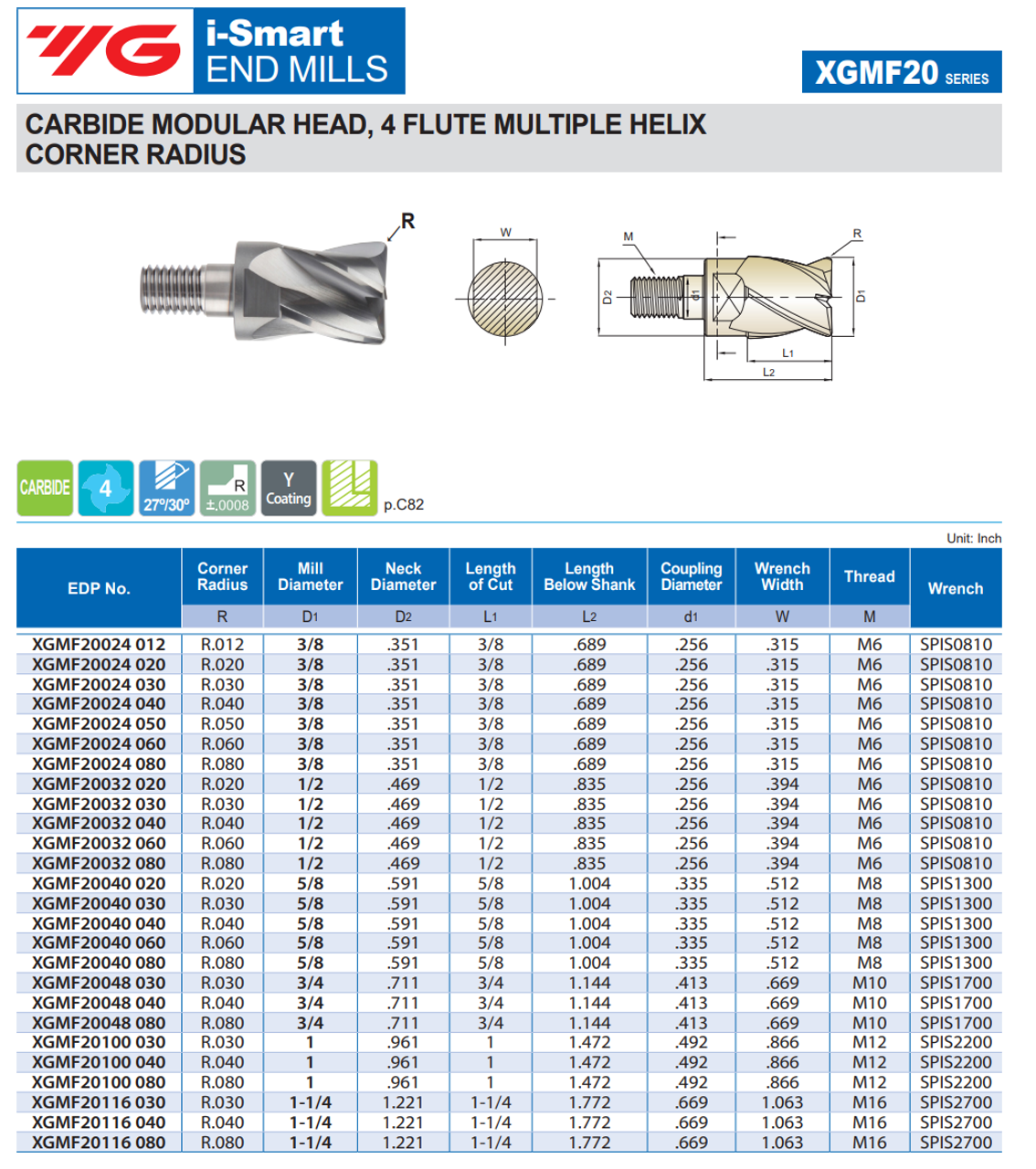

- YG-1 Series XGMF20: i-Smart Screw On Ultra-Micro Grain Carbide Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- 27°/30° Multiple Helix 4 Flute Corner Radius
- Wrench Included With Each Holder

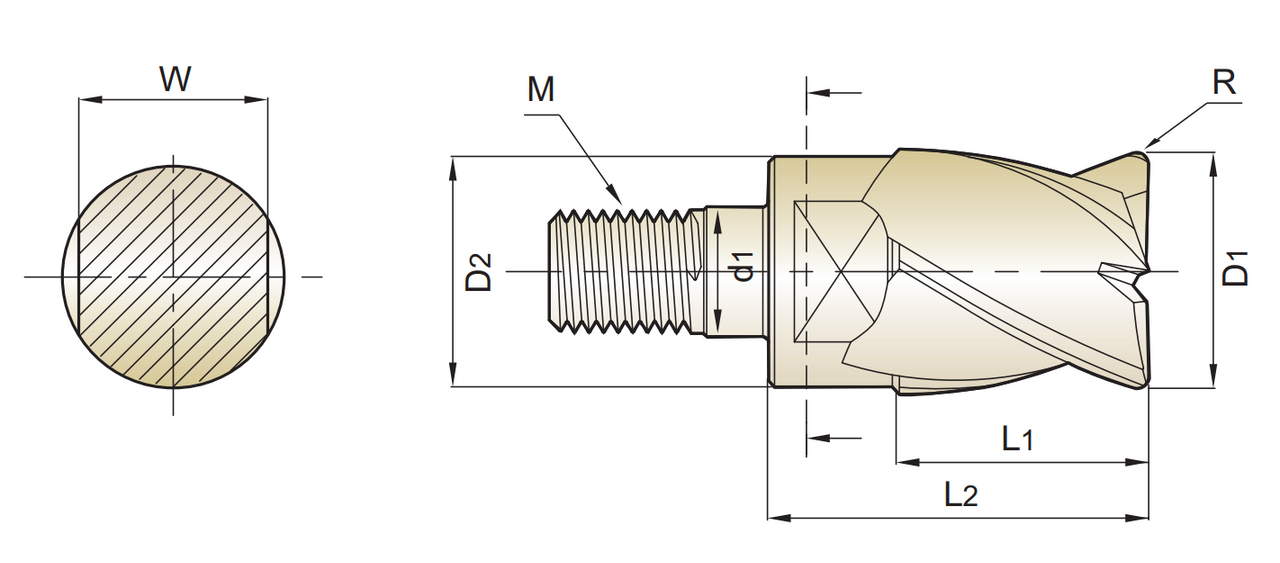

| Specs | ||
| R | Radius of Ball Nose | R.080 in. |
| D1 | Mill Diameter | 1/2 in. |
| D2 | Neck Diameter | .469 in. |
| L1 | Length of Cut | 1/2 in. |
| L2 | Length Below Shank | .835 in. |
| d1 | Coupling Diameter | .256 |
| W | Wrench Width | .394 |
| M | Thread | M6 |
| Wrench | SPIS0810 | |
Product Videos
Custom Field
Diameter 1/2 in.
Length of Cut 1/2 in.
Type Carbide Shank, Modular Cutter
Features M6 Threaded Connection
