Product Description
1/4-20 UNC H5 3 Flute Spiral Flute Blue Ring Tap For Stainless Steel, Hardslick Coated Super HSS
- For Steels, Stainless Steels, and Exotics up to 35 HRc
- Hardslick and Hardslick Coating for high performance, high heat and wear resistance
- Super HSS Technology for tough, chip-resistant cutting edge

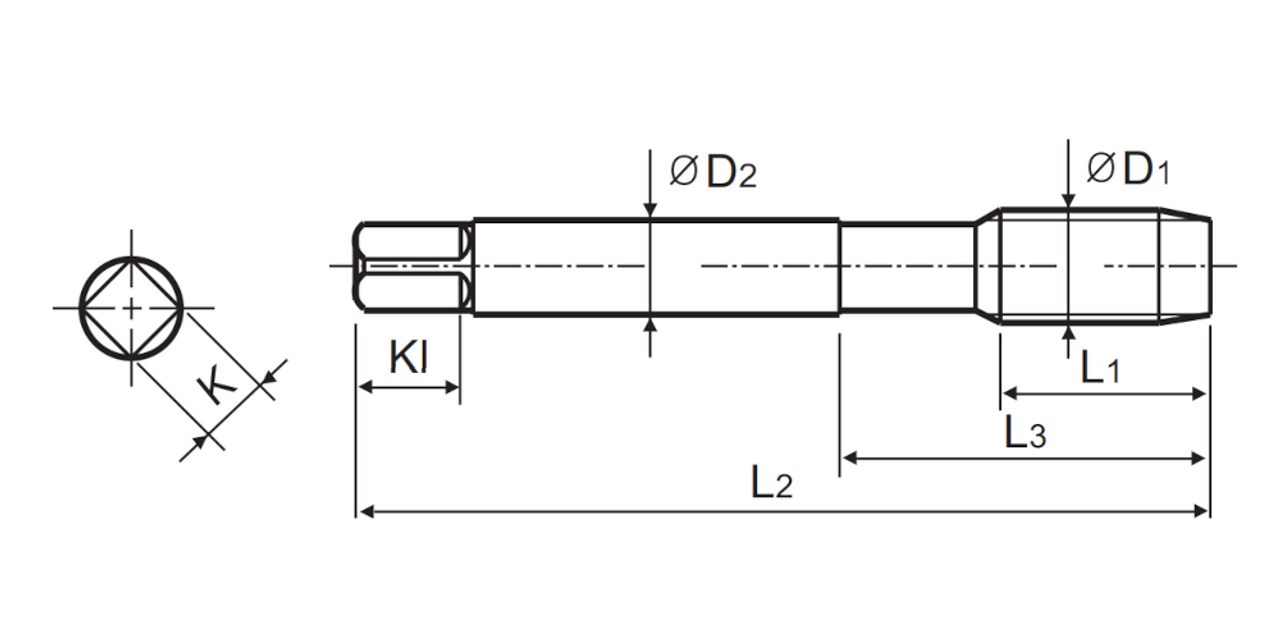

| Specs | ||
| OD | Thread Size | 1/4-20 |
| Od | Shank Diameter | 0.255" |
| Lt | Thread Length | 0.433" |
| L | Overall Length | 3.15" |
| K | Square Size | 0.191" |
| kl | Square Length | 0.31" |
| Flutes | 3 | |
| Limit | H5 | |
| Chamfer | 2P-3P | |
| Coating | Hardslick | |
Product Videos
Custom Field
Diameter 1/4-20
Length of Cut 0.433 in.
Overall Length 3.15 in.
Flutes 3 Flutes, DIN Length
Coating Hardslick
End Type Spiral Flute
Type UNC
Features H5 Limit
