Product Description

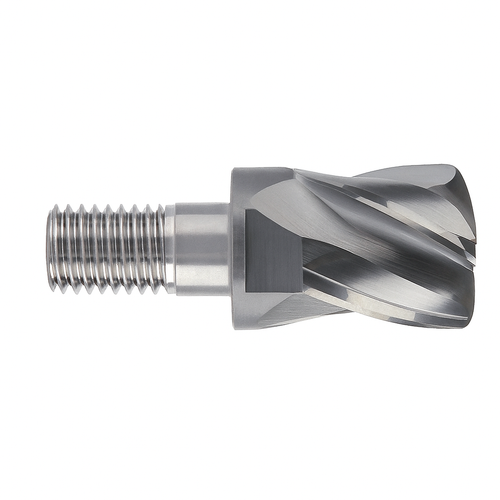

1" Diameter 4 Flute Carbide 27°/30° Multi-Helix I-Smart Modular Milling Head with .120 Corner Radius, 1.472" Length Below Shank, M12 Thread
- YG-1 Series XGMF20: i-Smart Screw On Ultra-Micro Grain Carbide Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- 27°/30° Multiple Helix 4 Flute Corner Radius
- Wrench Included With Each Holder

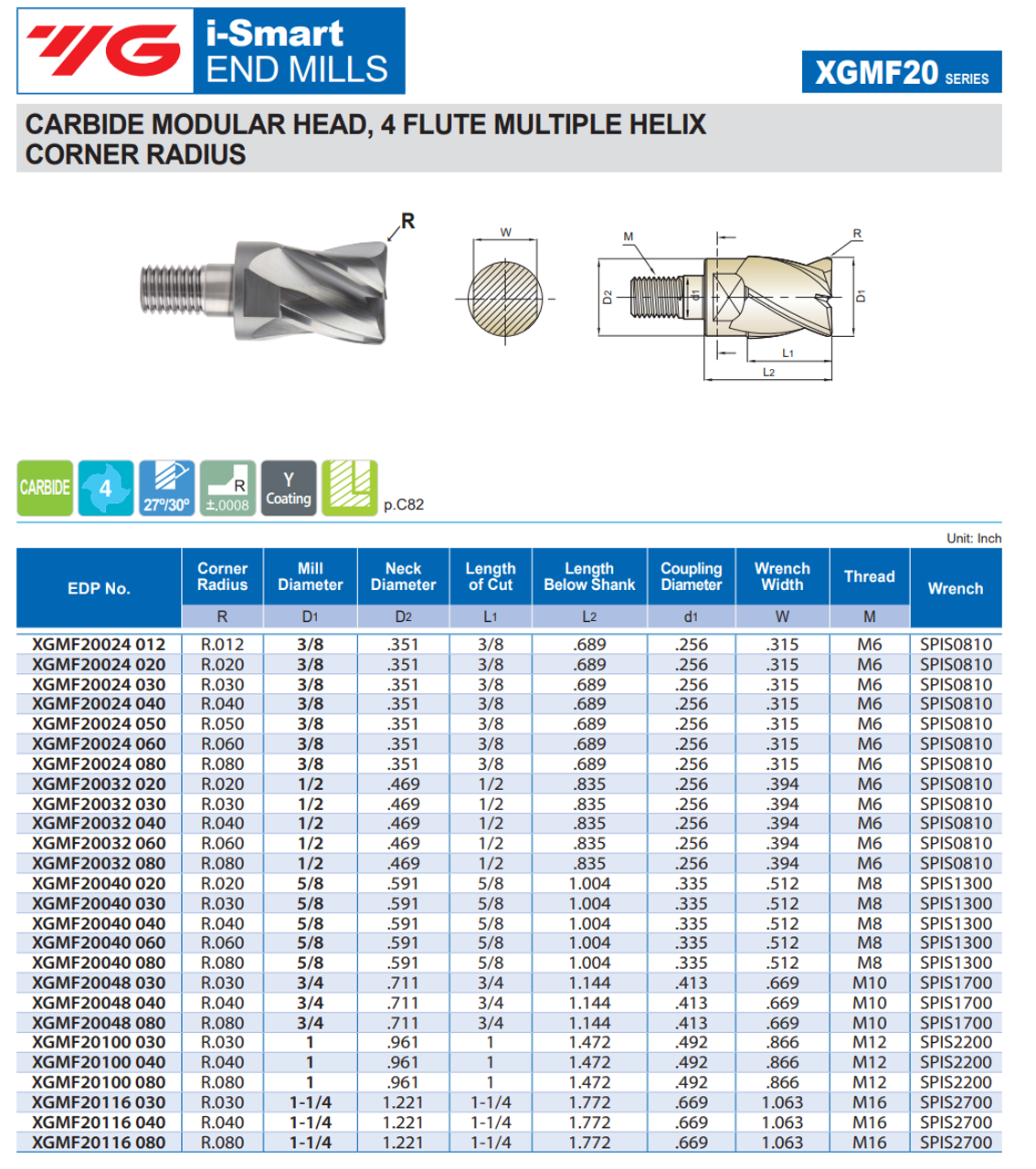

| Specs | ||
| R | Radius of Ball Nose | R.120 in. |
| D1 | Mill Diameter | 1 in. |
| D2 | Neck Diameter | .961 in. |
| L1 | Length of Cut | 1 in. |
| L2 | Length Below Shank | 1.472 in. |
| d1 | Coupling Diameter | .492 |
| W | Wrench Width | .866 |
| M | Thread | M12 |
| Wrench | SPIS2200 | |
Product Videos
Custom Field
Diameter 1 in.
Length of Cut 1 in.
Type Carbide Shank, Modular Cutter
Features M12 Threaded Connection
