Product Description

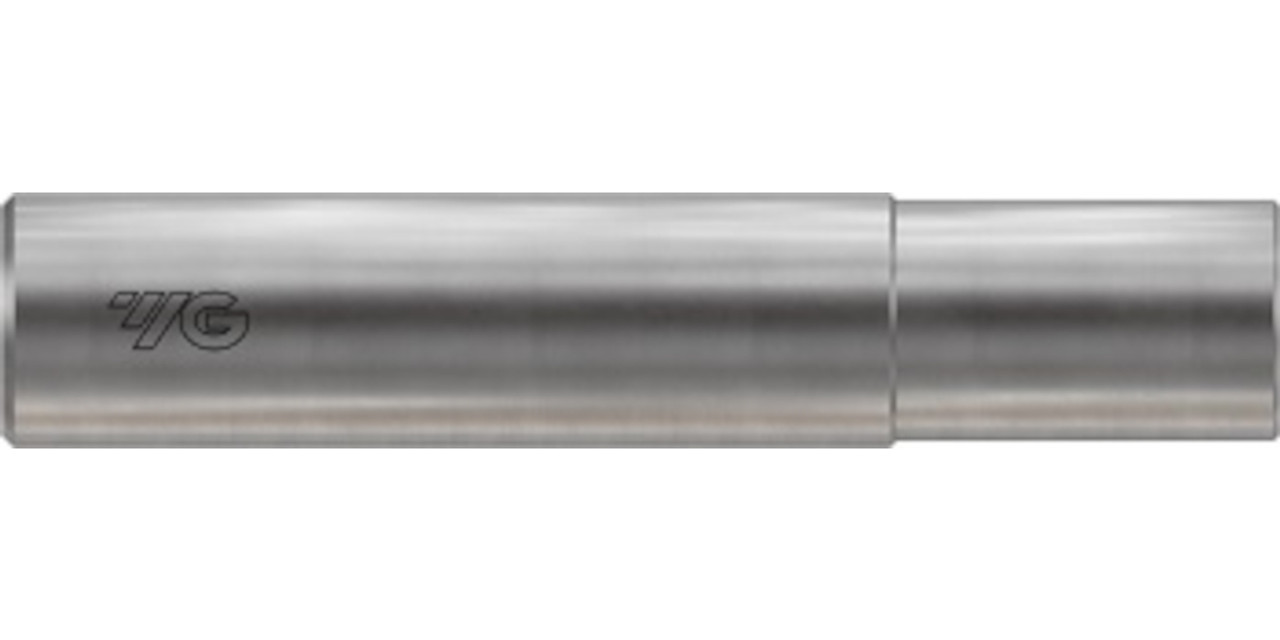

1" Extra Long Length i-Smart Carbide Holder, Straight Neck, For Modular Milling Heads, 1" Shank, M12 Thread
- ZMC Series: i-Smart Carbide Holders, Straight Neck Type For Screw On Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- Coolant Hole Through The Shank
- Wrench Included With Each Holder
| Specs | ||
| Mill Diameter | 1 in. | |
| SD | Shank Diameter | 1 in. |
| L | Overall Length | 11-13/16 in. |
| L1 | Neck Length | 7-7/8 in. |
| D | Neck Diameter | 61/64 in. |
| M | Thread Size | M12 |
| Wrench No. | SPIS2200 | |
| Coolant Hole | 13/64 in. | |
Product Videos
Custom Field
Diameter 1 in.
Overall Length 11-13/16 in.
Type Carbide Shank, Modular Cutter
Features M12 Threaded Connection
