Product Description
12.3mm YG-1 Carbide INOX Dream Drill, 14mm Shank, 140° Point, 8XD, Thru Coolant, TiAlN Coated
- Special flute shape and geometry suitable for machining stainless steel
- Excellent chip evacuation from better surface treatment
- Point R-thinning achieves superior centering and chip curling
- 8XD
- Coolant Thru
- TiAlN Coated for better surface finishes and Extra Longer tool life
- 140° Point Angle

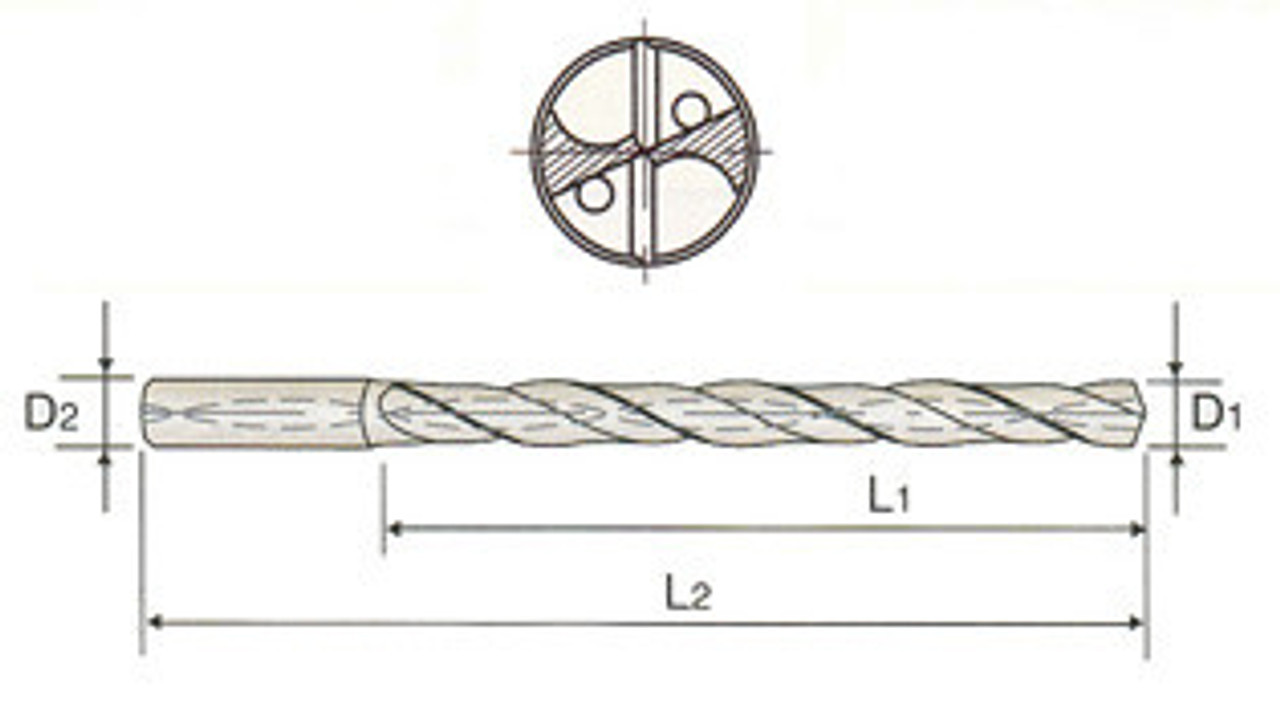

| Specs | ||
| D1 | Diameter | 12.3mm |
| D2 | Shank Diameter | 14mm |
| L1 | Length of Cut | 133mm |
| L2 | Overall Length | 178mm |
| Flutes | 2 | |
| Point Angle | 140° | |
| Coating | TiAlN | |
Warranty Information
0Product Videos
Custom Field
Diameter 12.3mm
Length of Cut 133mm
Overall Length 178mm
Flutes 2 Flutes
Coating TiAlN Coated
End Type 140° Point
Type 8XD - Extra Long
Features Coolant Thru
