Product Description

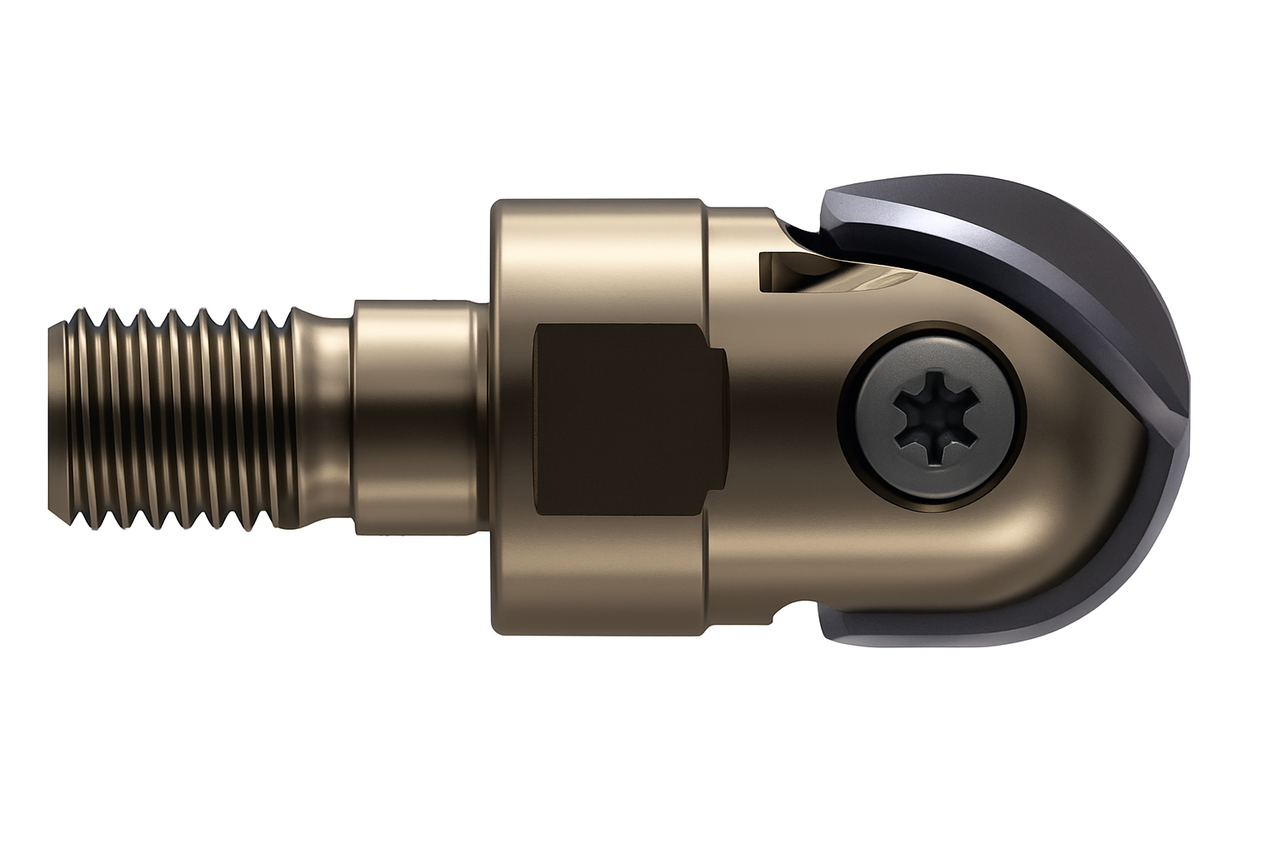

12mm Ball Nose i-Xmill Modular Head Holder For Ball and Corner Radius Inserts, M6 Thread

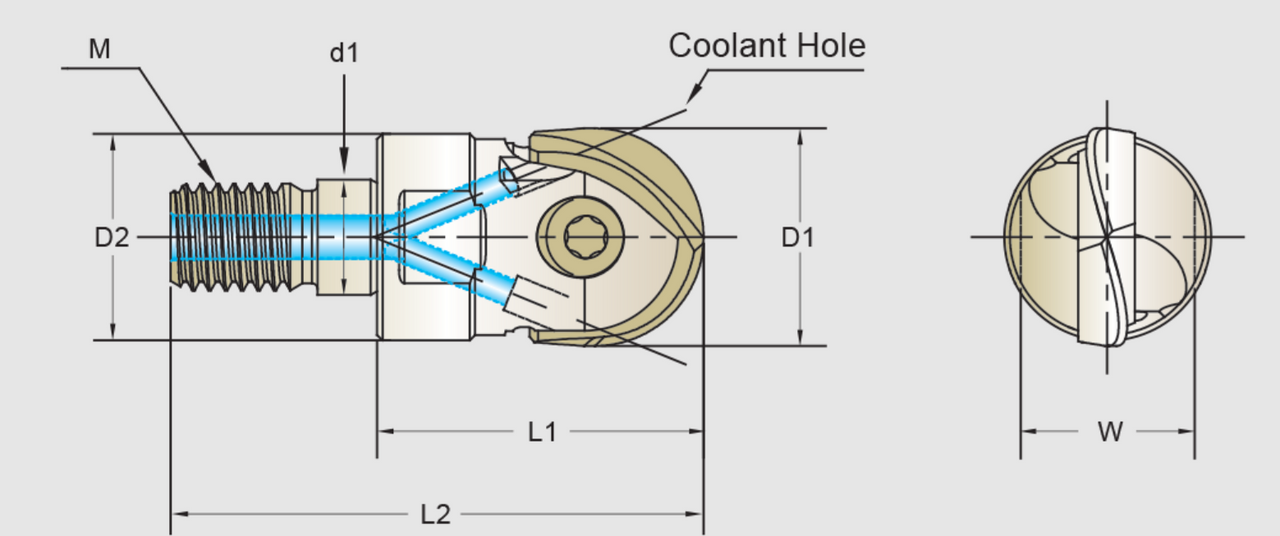

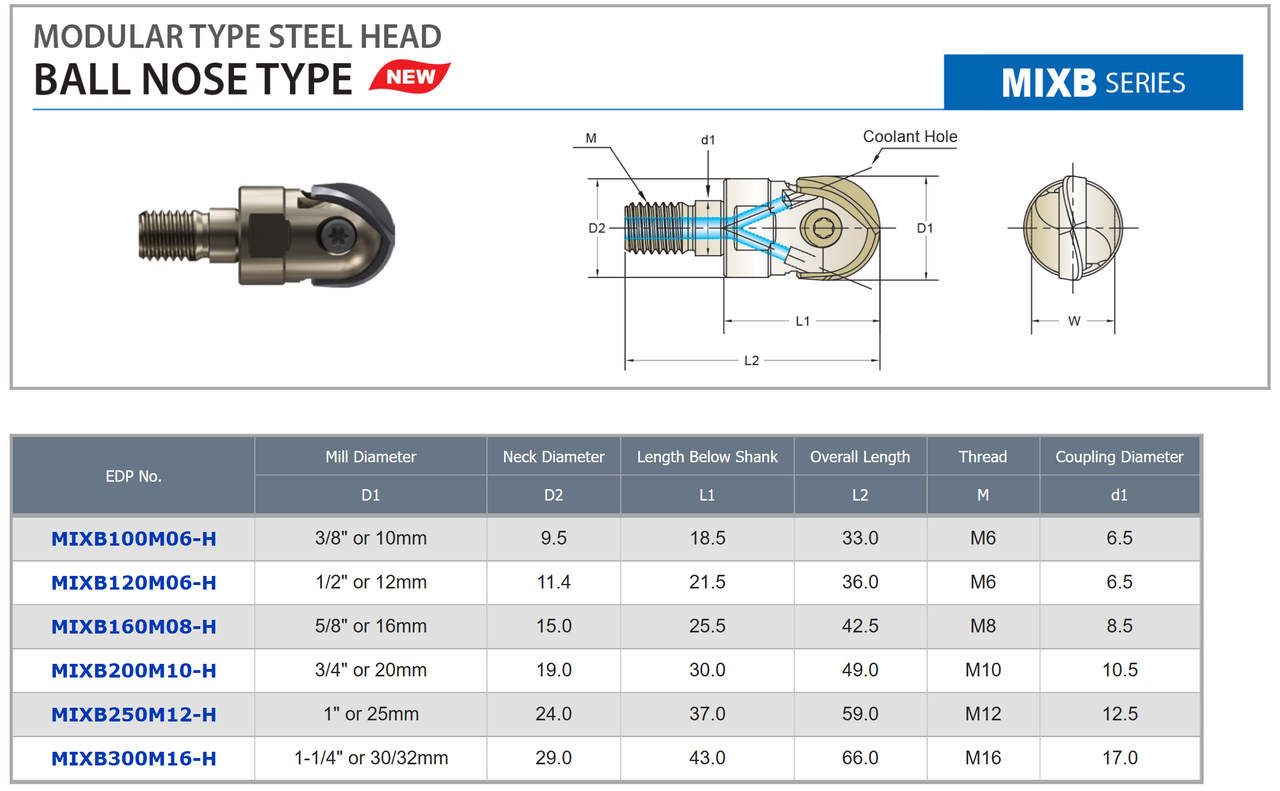

| Specs | ||
| D1 | Mill Diameter | 12MM |
| D2 | Neck Diameter | 11.4MM |
| L1 | Length Below Shank | 21.5MM |
| L2 | Overall Length | 36MM |
| M | Thread | M6 |
| d1 | Coupling Diameter | 6.5MM |
Product Videos
Custom Field
Diameter 11.4 MM
Overall Length 36 MM
Type Steel Shank, Modular Cutter
Features M6 Threaded Connection
