Product Description

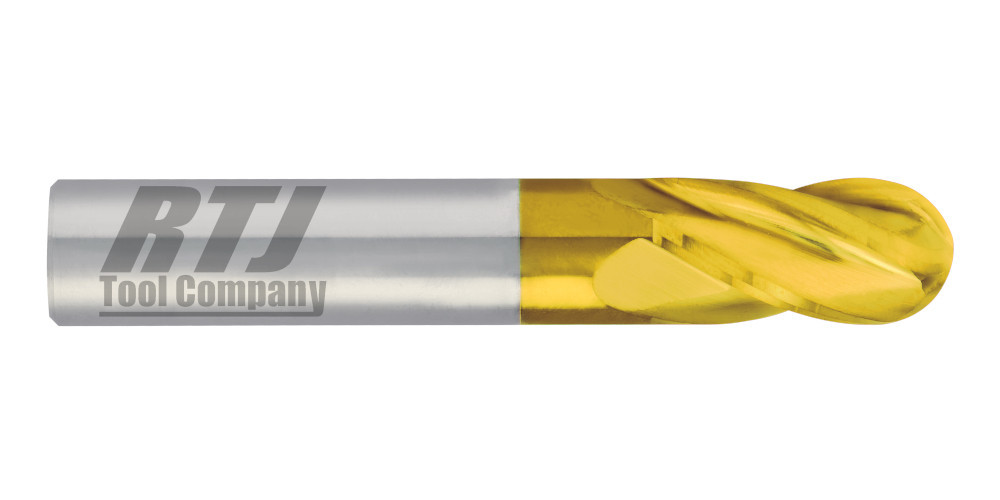

14.5MM Dia., 4 Flute, 32MM LOC, Ball Nose TiN Coated Carbide End Mill
4 Flute, Metric, Regular Length, Ball Nose, TiN Coated Solid Carbide General Purpose Endmill
- Single End
- 30° Helix
- Metric
- Ball End
- Solid Carbide End Mills
- CNC Ground in the USA by HTC Tool-Cutter MFG
| Specs | ||
| D1 | Diameter | 14.5MM |
| D2 | Shank Diameter | 16MM |
| L2 | Length of Cut | 32MM |
| L1 | Overall Length | 88MM |
| Flutes | 4 | |
| Coating | TiN Coated | |
Product Videos
Custom Field
Diameter 14 MM
Length of Cut 30 MM
Overall Length 88 MM
Flutes 4 Flutes
Coating TiN Coated
End Type Ball
Type Metric
