Product Description

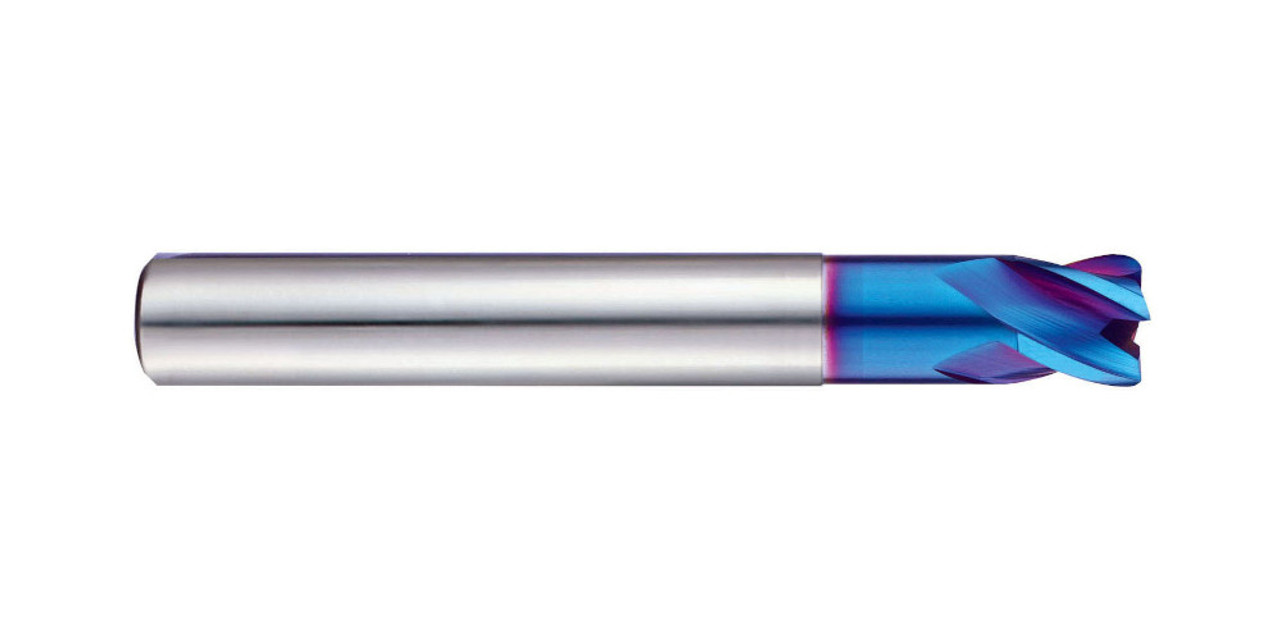

16MM Dia., 4 Flute., 18MM LOC, 16MM Plain Shank, 90MM OAL, 38MM Length Below Shank, Carbide End Mill
Designed to machine high hardened materials.
Suitable for dry cutting, high speed cutting due to newly developed raw-material and new coating.
Excellent workpiece finish.
Deep slotting is possible due to the reduced neck.
Corner radius for preventing the chipping in high speed machining.
Higher wear-resistance.
| Specs | ||
| D1 | Mill Diameter | 16MM |
| D2 | Shank Diameter | 16MM |
| D3 | Neck Diameter | 15.7MM |
| L1 | Length of Cut | 18MM |
| L2 | Overall Length | 90MM |
| L3 | Length Below Shank | 38MM |
| Flutes | 4 | |
| Corner Radius | 0.30MM | |
Product Videos
Custom Field
Diameter 16 MM
Length of Cut 18 MM
Shank Diameter 16 MM
Length Below Shank 38 MM
Overall Length 90 MM
Corner Radius 0.300 MM
Flutes 4
Coating/Grade Blue Coated
Type High Hardness
Helix Degree 30 Degrees
