Product Description

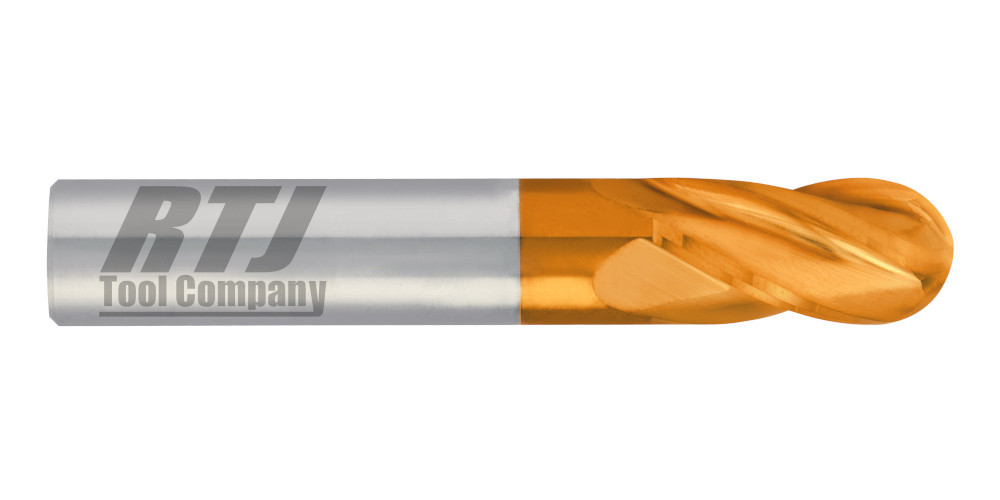

17MM Dia., 3 Flute, 36MM LOC, Ball Nose TiCN Coated Carbide End Mill
3 Flute, Metric, Regular Length, Ball Nose, TiCN Coated Solid Carbide General Purpose Endmill
- Single End
- 30° Helix
- Metric
- Ball End
- Solid Carbide End Mills
- CNC Ground in the USA by HTC Tool-Cutter MFG
| Specs | ||
| D1 | Diameter | 17MM |
| D2 | Shank Diameter | 18MM |
| L2 | Length of Cut | 36MM |
| L1 | Overall Length | 100MM |
| Flutes | 3 | |
| Coating | TiCN Coated | |
Product Videos
Custom Field
Diameter 17 MM
Length of Cut 36 MM
Overall Length 100 MM
Flutes 3 Flutes
Coating TiCN Coated
End Type Ball
Type Metric
