Product Description

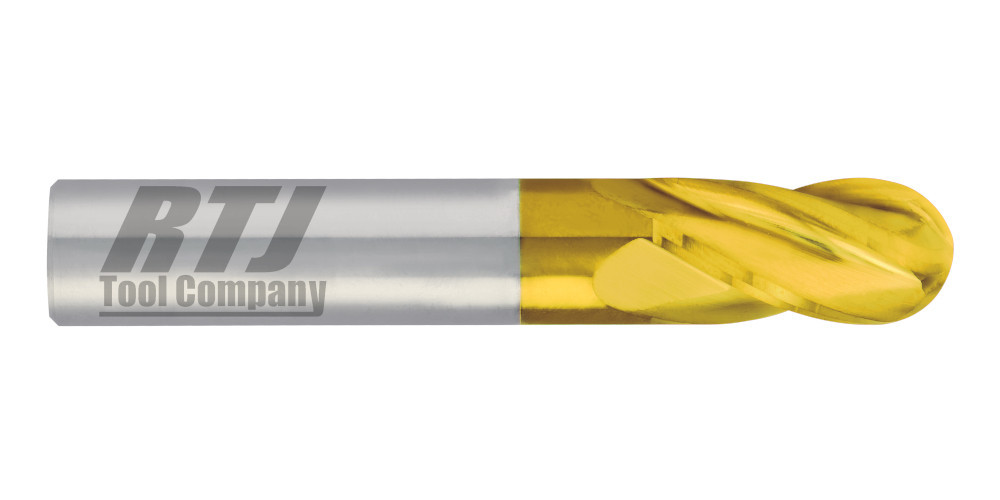

21.5MM Dia., 3 Flute, 38MM LOC, Ball Nose TiN Coated Carbide End Mill
3 Flute, Metric, Regular Length, Ball Nose, TiN Coated Solid Carbide General Purpose Endmill
- Single End
- 30° Helix
- Metric
- Ball End
- Solid Carbide End Mills
- CNC Ground in the USA by HTC Tool-Cutter MFG
| Specs | ||
| D1 | Diameter | 21.5MM |
| D2 | Shank Diameter | 22MM |
| L2 | Length of Cut | 38MM |
| L1 | Overall Length | 100MM |
| Flutes | 3 | |
| Coating | TiN Coated | |
Product Videos
Custom Field
Diameter 21.5 MM
Length of Cut 38 MM
Overall Length 100 MM
Flutes 3 Flutes
Coating TiN Coated
End Type Ball
Type Metric
