Product Description

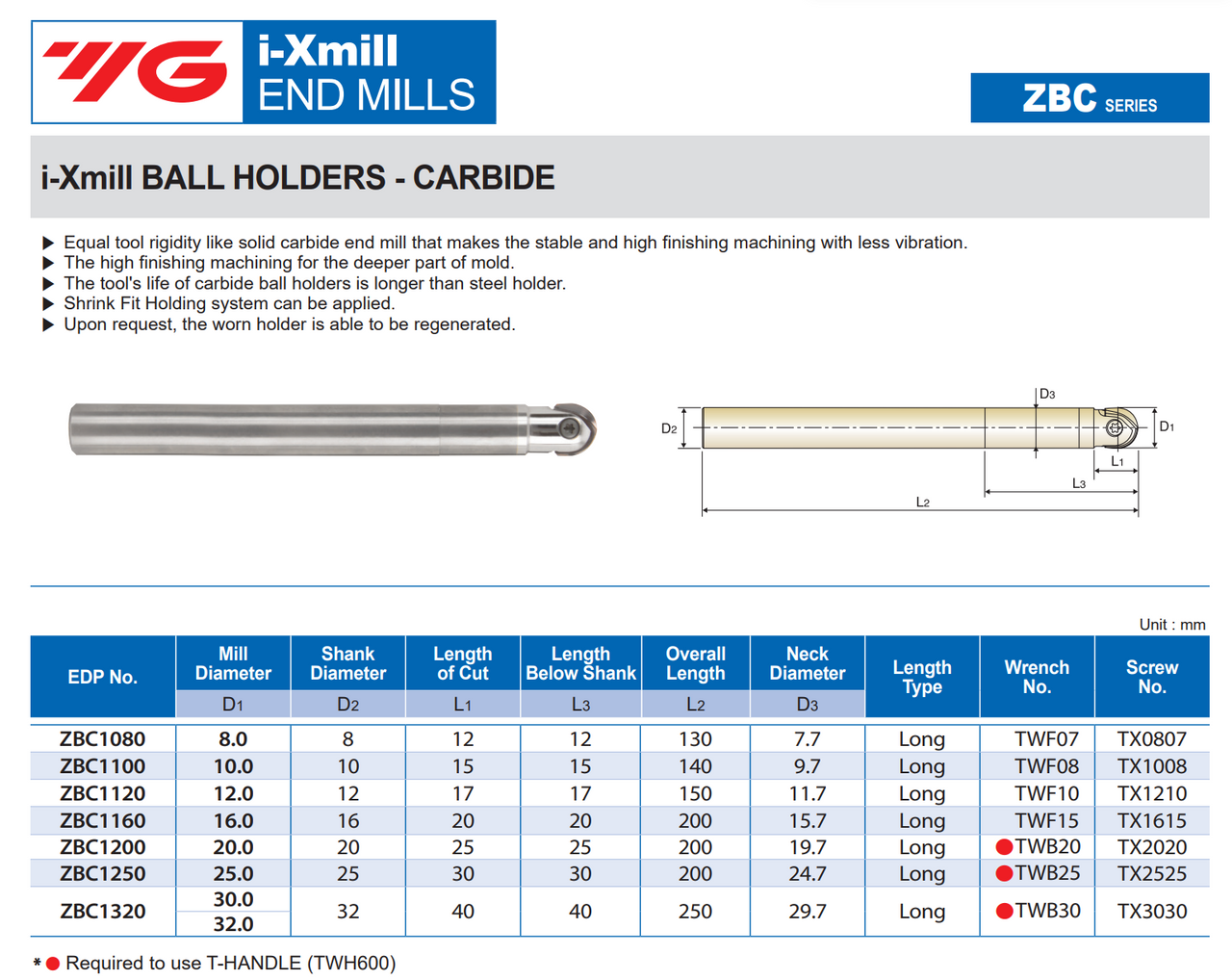

25mm I-Xmill Ball Straight Neck Carbide Holder, Long Length, 30mm LOC, 200mm OAL
- Equal tool rigidity like solid carbide end mill that makes the stable and high finishing machining with less vibration.
- High finishing machining for the deeper part of mold.
- The tool's life of carbide ball holders is longer than steel holder.
- Shrink fit holding system can be applied.
- Upon request, the worn holder is able to be regenerated.

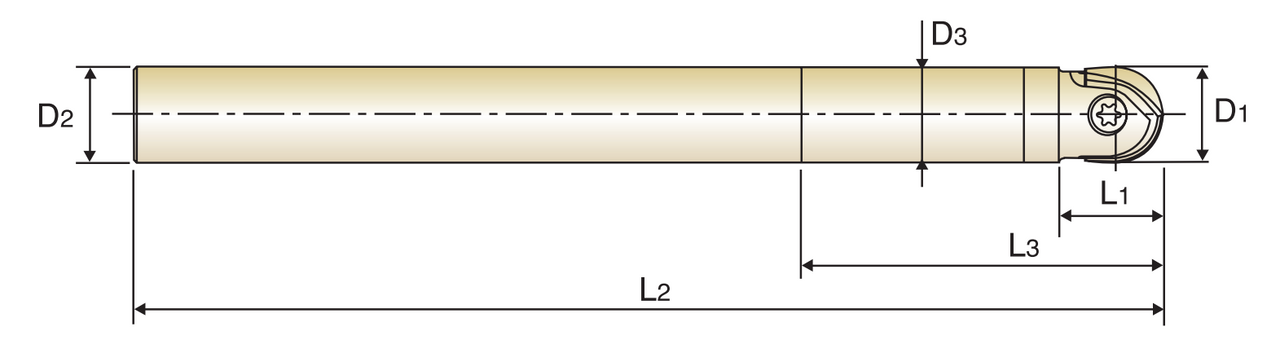

| Specs | ||
| D1 | Mill Diameter | 25mm |
| D2 | Shank Diameter | 25mm |
| D3 | Neck Diameter | 24.7mm |
| L1 | Length of Cut | 30mm |
| L3 | Length Below Shank | 75mm |
| L2 | Overall Length | 200mm |
| Length Type | Long | |
| Wrench | TWB25 | |
| Screw | TX2525 | |
Product Videos
Custom Field
Diameter 25 MM
Overall Length 200 MM
Type Carbide Shank, Modular Cutter
stock_level 44
