Product Description

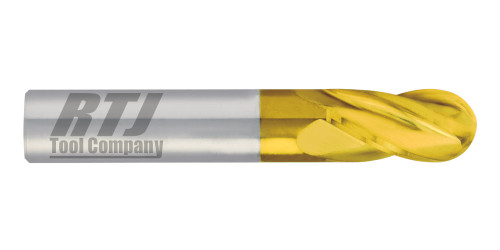

3/16 Dia., 4 Flute, 1 1/8 LOC, TiN Coated Ball Nose Carbide End Mill
4 Flute, Extra Long Length, Ball Nose, TiN Coated, Solid Carbide General Purpose Endmill
- Single End
- 30° Helix
- Ball Nose
- Solid Carbide End Mills
- CNC Ground in the USA by HTC Tool-Cutter MFG
| Specs | ||
| D1 | Diameter | 3/16 in. |
| D2 | Shank Diameter | 3/16 in. |
| L2 | Length of Cut | 1 1/8 in. |
| L1 | Overall Length | 3 in. |
| Flutes | 4 | |
| Coating | TiN Coated | |
Product Videos
Custom Field
Diameter 3/16 in.
Length of Cut 1 1/8 in.
Overall Length 3 in.
Flutes 4 Flutes
Coating TiN Coated
End Type Ball
Type XL Length
