Product Description

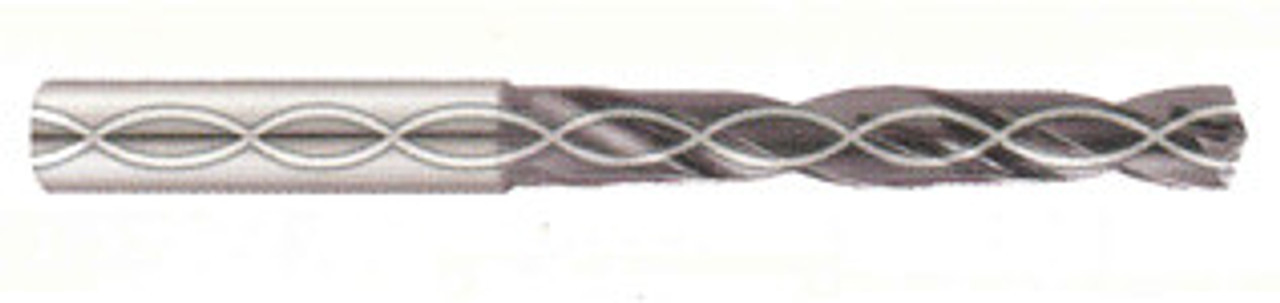

3/16" YG-1 Carbide INOX Dream Drill, 6mm Shank, 140° Point, 3XD, Thru Coolant, TiAlN Coated
- Special flute shape and geometry suitable for machining stainless steel
- Excellent chip evacuation from better surface treatment
- Point R-thinning achieves superior centering and chip curling
- 3XD
- Coolant Thru
- TiAlN Coated for better surface finishes and longer tool life
- 140° Point Angle
| Specs | ||
| D1 | Diameter | 3/16 in. |
| D2 | Shank Diameter | 6mm |
| L1 | Length of Cut | 20mm |
| L2 | Overall Length | 62mm |
| Flutes | 2 | |
| Point Angle | 140° | |
| Coating | TiAlN | |
Warranty Information
0Product Videos
Custom Field
Diameter 3/16 in.
Length of Cut 20mm
Overall Length 62mm
Flutes 2 Flutes
Coating TiAlN Coated
End Type 140° Point
Type 3XD - Short
Features Coolant Thru
