Product Description

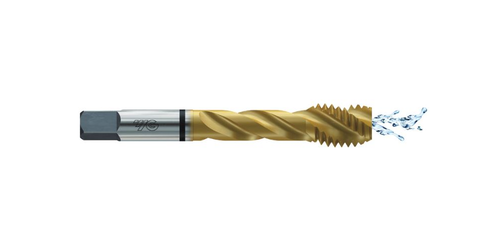

3/4-10 UNC H5 4 Flute Spiral Fluted Combo Tap, Coolant Thru, Multi-Purpose TiN Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
- Thru-Coolant
| Specs | ||
| OD | Thread Size | 3/4-10 |
| Od | Shank Diameter | 0.590" |
| Lt | Thread Length | 0.827" |
| L | Overall Length | 4.25" |
| K | Square Size | 0.442" |
| kl | Square Length | 0.688" |
| Flutes | 4 | |
| Limit | H5 | |
| Chamfer | 2P-3P | |
| Coating | TiN | |
Product Videos
Custom Field
Diameter 3/4-10
Length of Cut 0.827 in.
Overall Length 4.25 in.
Flutes 4 Flutes, Thru Coolant
Coating TiN
End Type Spiral Flute
Type UNC
Features H5 Limit
