Product Description
3/4-16 UNF H5 3 Flute Spiral Pointed Combo Tap, Coolant Thru, Multi-Purpose TiN Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.

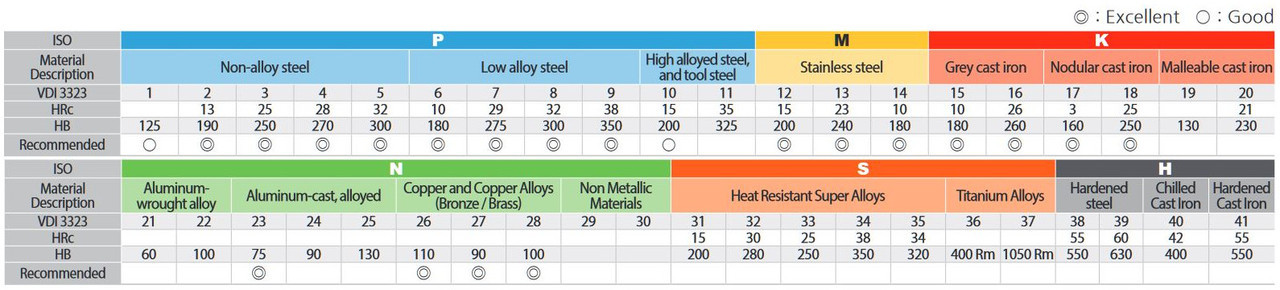

- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
| Specs | ||
| OD | Thread Size | 3/4-16 |
| Od | Shank Diameter | 0.590" |
| Lt | Thread Length | 1.201" |
| L | Overall Length | 4.25" |
| K | Square Size | 0.442" |
| kl | Square Length | 0.688" |
| Flutes | 3 | |
| Limit | H5 | |
| Chamfer | 4P-5P | |
| Coating | TiN | |
Product Videos
Custom Field
Diameter 3/4-16
Length of Cut 1.201 in.
Overall Length 4.25 in.
Flutes 3 Flutes, Thru Coolant
Coating TiN
End Type Spiral Point
Type UNF
Features H5 Limit
