Product Description

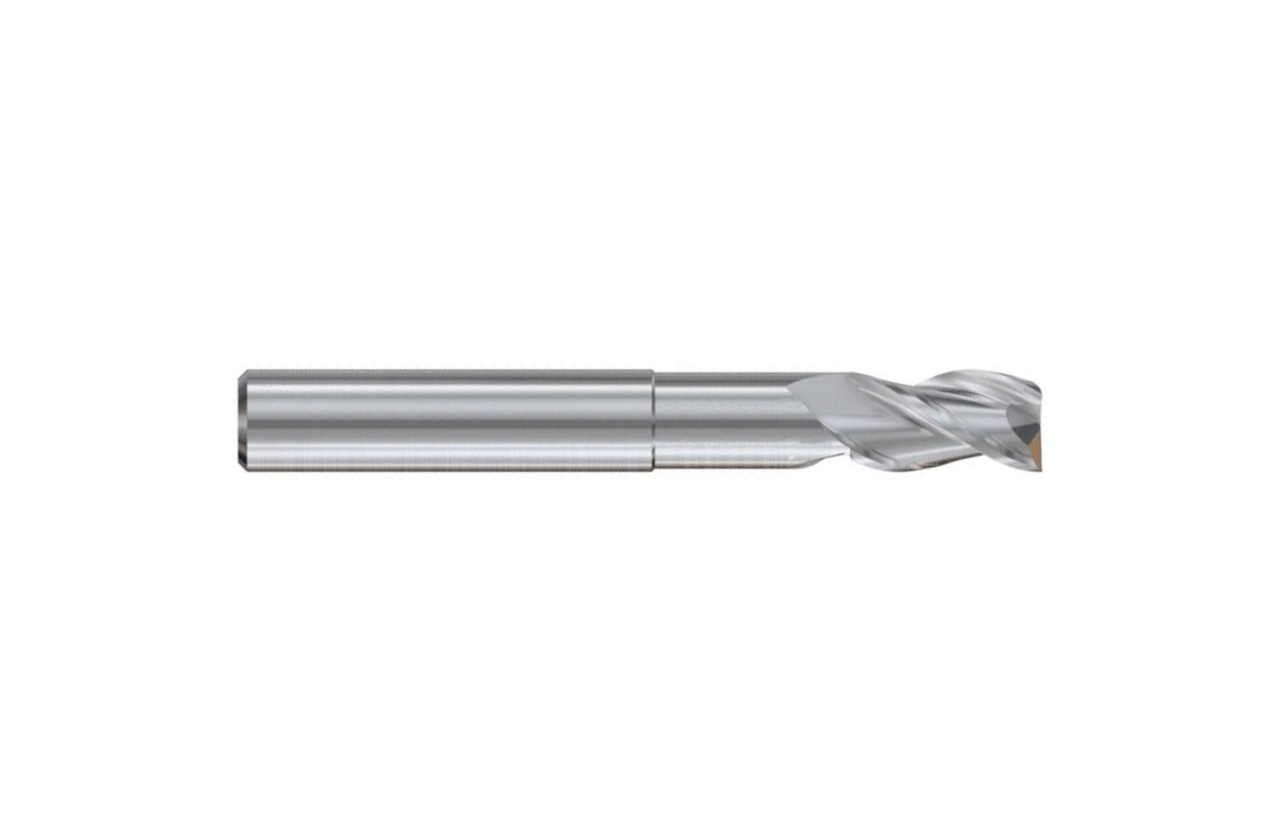

3/4 Dia., 3 Flute., 1 LOC, 3-3/8 Reach, 6 OAL, ALU-Power HPC Uncoated Carbide End Mill
Balanced cutting with less vibration.
Ability to run at high speeds with less heat in aluminum.
More efficient chip evacuation.
Ability to counteract extreme radial forces.
| Specs | ||
| D1 | Diameter | 3/4 |
| D2 | Shank Diameter | 3/4 |
| D3 | Neck Diameter | 0.710 |
| L1 | Length of Cut | 1 |
| L2 | Overall Length | 6 |
| L3 | Length Below Shank | 3-3/8 |
Product Videos
Custom Field
Diameter 3/4 in.
Length of Cut 1 in.
Overall Length 6 in.
Flutes 3
Coating Uncoated
End Type Square
Type High Performance
Helix Degree 37 Degree Variable Flute
