Product Description
3/4" Diameter 4 Flute Carbide 27°/30° Multi-Helix I-Smart Modular Milling Head with .080 Corner Radius, 1.144" Length Below Shank, M10 Thread

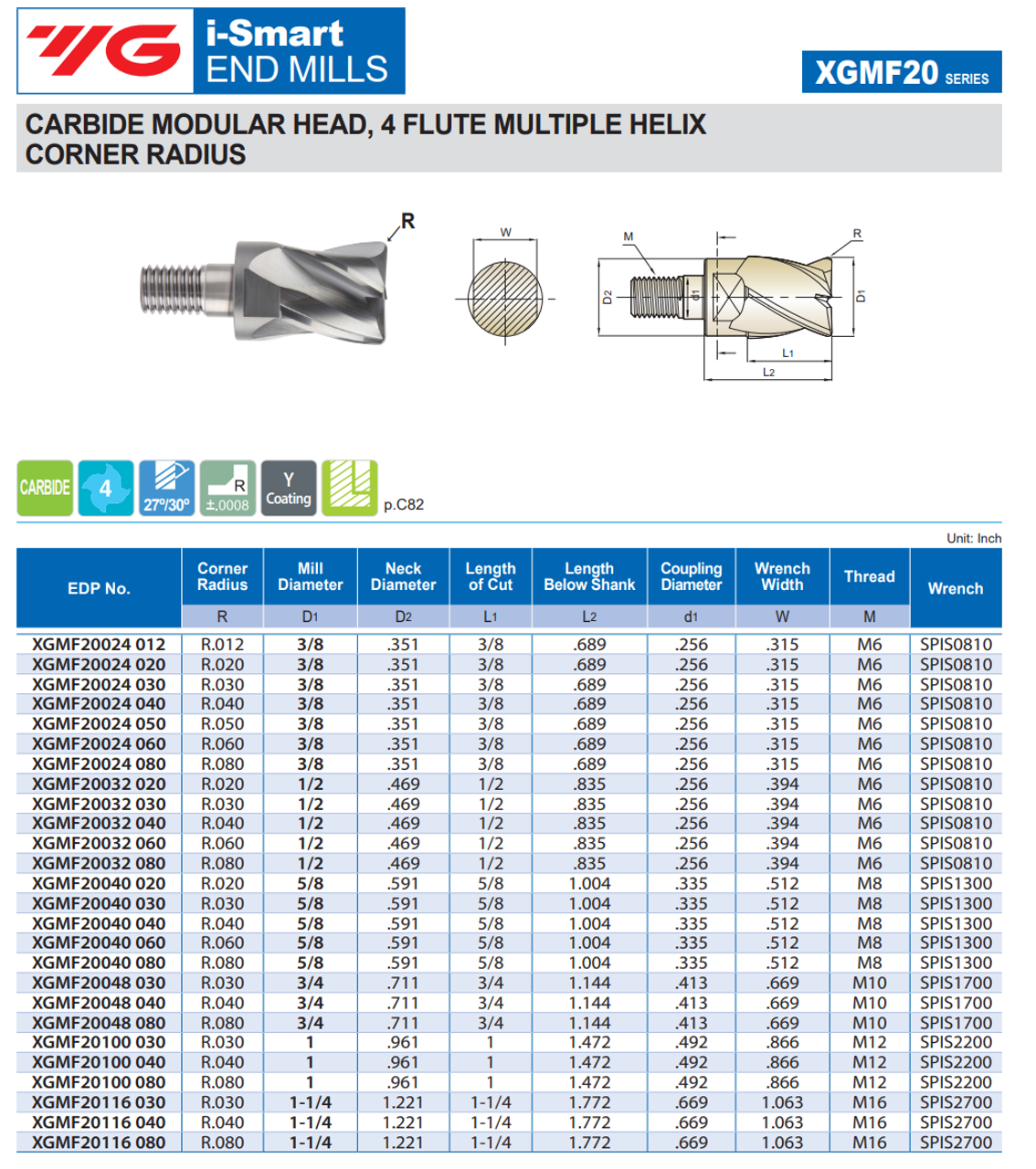

- YG-1 Series XGMF20: i-Smart Screw On Ultra-Micro Grain Carbide Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- 27°/30° Multiple Helix 4 Flute Corner Radius
- Wrench Included With Each Holder

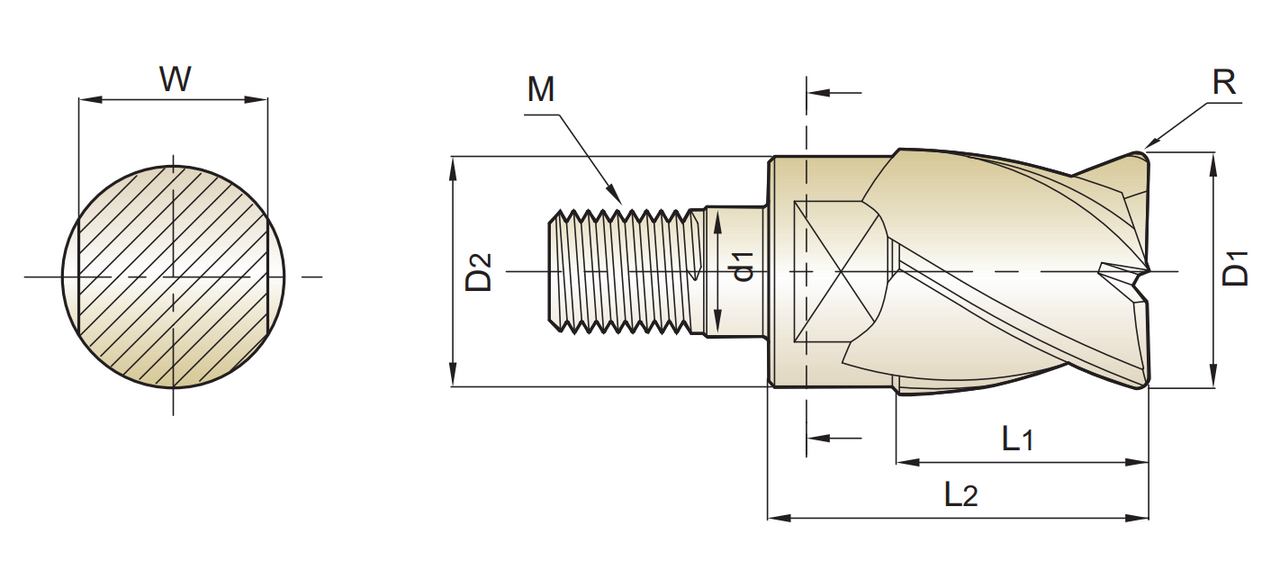

| Specs | ||
| R | Radius of Ball Nose | R.080 in. |
| D1 | Mill Diameter | 3/4 in. |
| D2 | Neck Diameter | .711 in. |
| L1 | Length of Cut | 3/4 in. |
| L2 | Length Below Shank | 1.144 in. |
| d1 | Coupling Diameter | .413 |
| W | Wrench Width | .669 |
| M | Thread | M10 |
| Wrench | SPIS1700 | |
Product Videos
Custom Field
Diameter 3/4 in.
Length of Cut 3/4 in.
Type Carbide Shank, Modular Cutter
Features M10 Threaded Connection
