Product Description

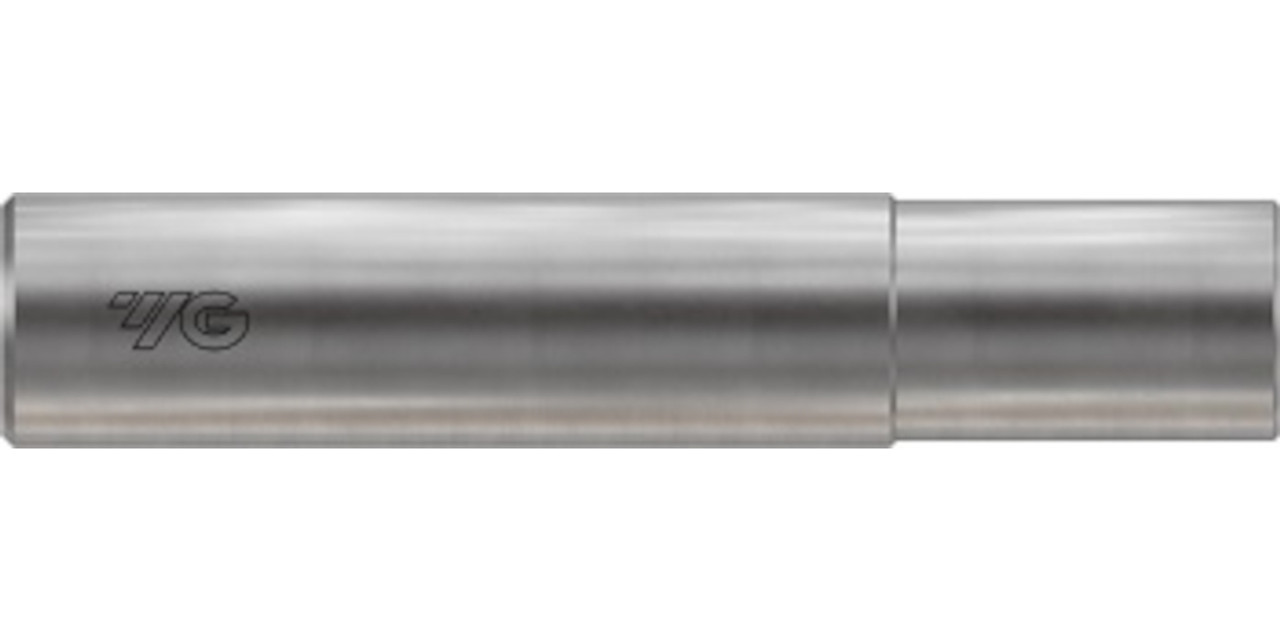

3/4" Extra Long Length i-Smart Carbide Holder, Straight Neck, For Modular Milling Heads, 3/4" Shank, M10 Thread
- ZMC Series: i-Smart Carbide Holders, Straight Neck Type For Screw On Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- Coolant Hole Through The Shank
- Wrench Included With Each Holder
| Specs | ||
| Mill Diameter | 3/4 in. | |
| SD | Shank Diameter | 3/4 in. |
| L | Overall Length | 9-13/16 in. |
| L1 | Neck Length | 6-19/64 in. |
| D | Neck Diameter | 45/64 in. |
| M | Thread Size | M10 |
| Wrench No. | SPIS1700 | |
| Coolant Hole | 5/32 in. | |
Product Videos
Custom Field
Diameter 3/4 in.
Overall Length 9-13/16 in.
Type Carbide Shank, Modular Cutter
Features M10 Threaded Connection
