Product Description
#3-48 UNC H2 2 Flute Spiral Fluted Combo Tap, DIN Length-ANSI Shank, Multi-purpose TiCN Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading

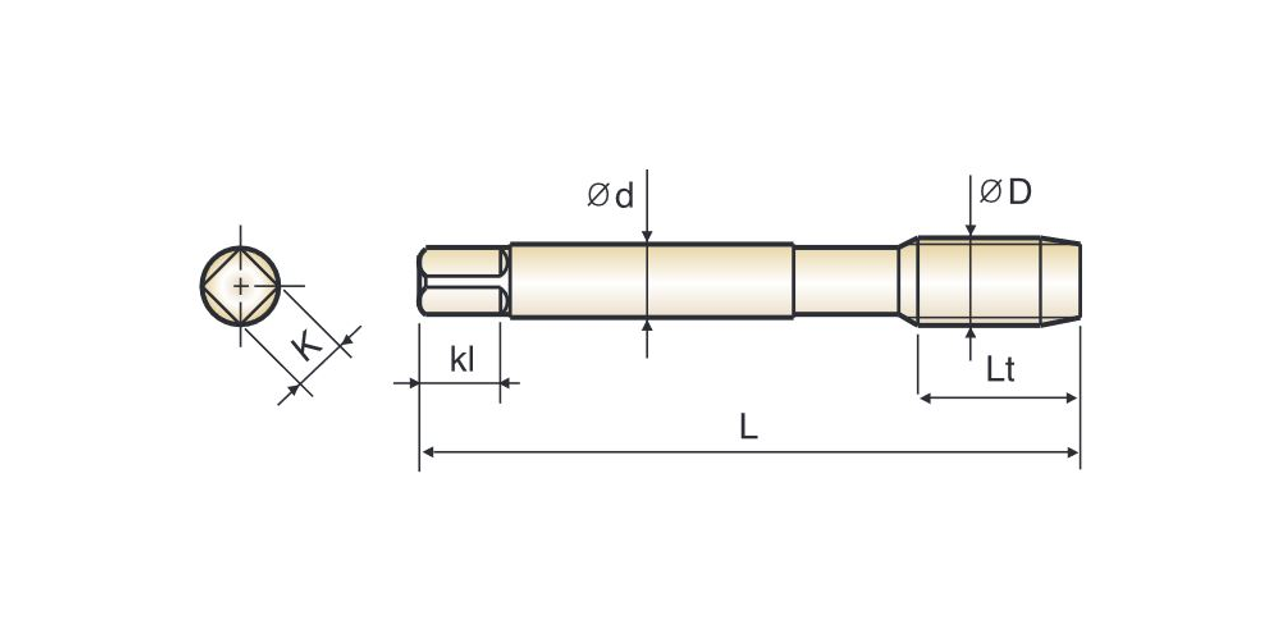

| Specs | ||
| OD | Thread Size | #3-48 |
| Od | Shank Diameter | 0.141" |
| Lt | Thread Length | 0.197" |
| L | Overall Length | 1.97" |
| K | Square Size | 0.110" |
| kl | Square Length | 0.188" |
| Flutes | 2 | |
| Limit | H2 | |
| Chamfer | 2P-3P | |
| Coating | TiCN | |
Product Videos
Custom Field
Diameter #3-48
Length of Cut 0.197 in.
Overall Length 1.97 in.
Flutes 2 Flutes, DIN Length
Coating TiCN
End Type Spiral Flute
Type UNC
Features H2 Limit
