Product Description
3/8-16 UNC H5 3 Flute Spiral Pointed Combo Tap, Coolant Thru, Multi-Purpose Uncoated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.

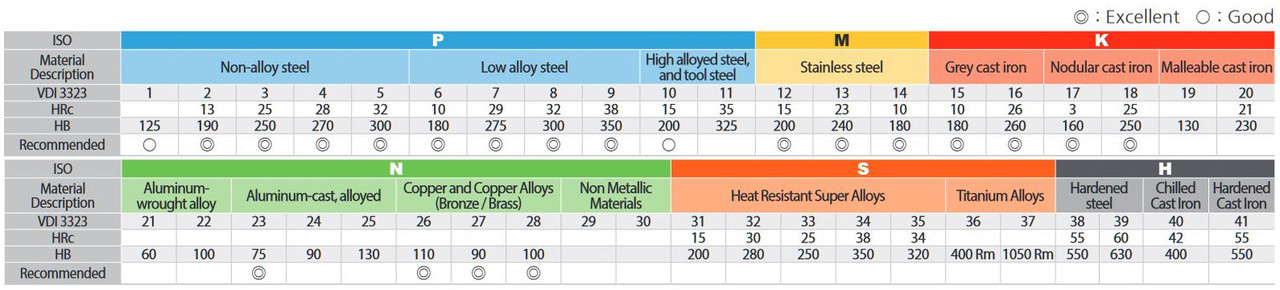

- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
| Specs | ||
| OD | Thread Size | 3/8-16 |
| Od | Shank Diameter | 0.381" |
| Lt | Thread Length | 0.748" |
| L | Overall Length | 2.938" |
| K | Square Size | 0.286" |
| kl | Square Length | 0.438" |
| Flutes | 3 | |
| Limit | H5 | |
| Chamfer | 4P-5P | |
| Coating | Uncoated | |
Product Videos
Custom Field
Diameter 3/8-16
Length of Cut 0.748 in.
Overall Length 2.938 in.
Flutes 3 Flutes, Thru Coolant
Coating Uncoated
End Type Spiral Point
Type UNC
Features H5 Limit
