Product Description

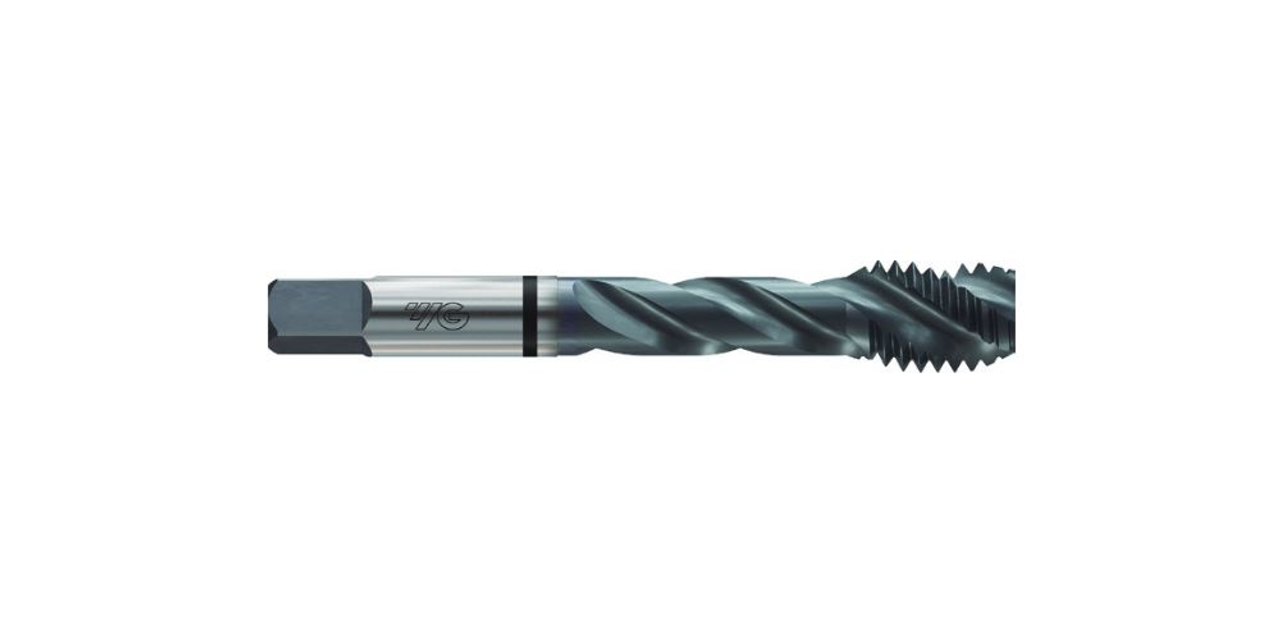

3/8-24 UNF H3 3 Flute Spiral Fluted Combo Tap For Stainless Steel TiCN Coated HSS-EX
FOR TAPPING IN STAINLESS STEEL MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.

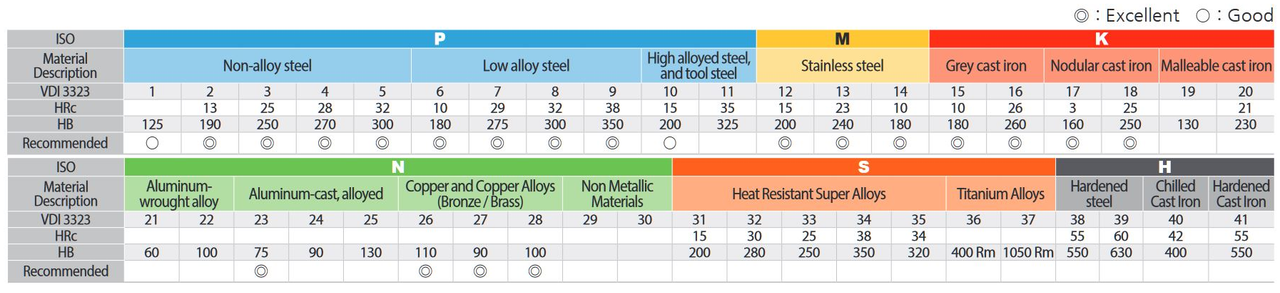

- For Free Machining Stainless Steels up to 23HRC
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
| Specs | ||
| OD | Thread Size | 3/8-24 |
| Od | Shank Diameter | 0.381" |
| Lt | Thread Length | 0.394" |
| L | Overall Length | 2.938" |
| K | Square Size | 0.286" |
| kl | Square Length | 0.438" |
| Flutes | 3 | |
| Limit | H3 | |
| Chamfer | 2P-3P | |
| Coating | TiCN | |
Product Videos
Custom Field
Diameter 3/8-24
Length of Cut 0.394 in.
Overall Length 2.938 in.
Flutes 3 Flutes
Coating TiCN
End Type Spiral Flute
Type UNC
Features H3 Limit
