Product Description

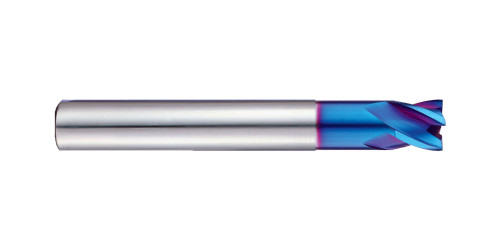

3/8" Dia., 4 Flute., 1/2" LOC, 0.008" Corner Radius, 3" OAL, Carbide End Mill
Designed to machine high hardened materials.
Suitable for dry cutting, high speed cutting due to newly developed raw-material and new coating.
Excellent workpiece finish.
Deep slotting is possible by reduced neck.
Corner radius for preventing the chipping in high speed machining.
Higher wear-resistance.
YG-1 Alu-Power HPC Catalog Download
| Specs | ||
| D1 | Mill Diameter | 3/8 in. |
| D2 | Shank Diameter | 3/8 in. |
| D3 | Neck Diameter | 0.363 in. |
| L1 | Length of Cut | 1/2 in. |
| L2 | Overall Length | 3 in. |
| L3 | Length Below Shank | 1 in. |
| Flutes | 4 | |
| Corner Radius | .008 in. | |
Product Videos
Custom Field
Diameter 3/8 in.
Length of Cut 1/2 in.
Length Below Shank 1 in.
Overall Length 3 in.
Neck Diameter 0.363 in.
Flutes 4
Coating/Grade Blue Coated
End Type Corner Radius 0.008 in.
Type High Performance
Helix Degree 30 Degrees
