Product Description

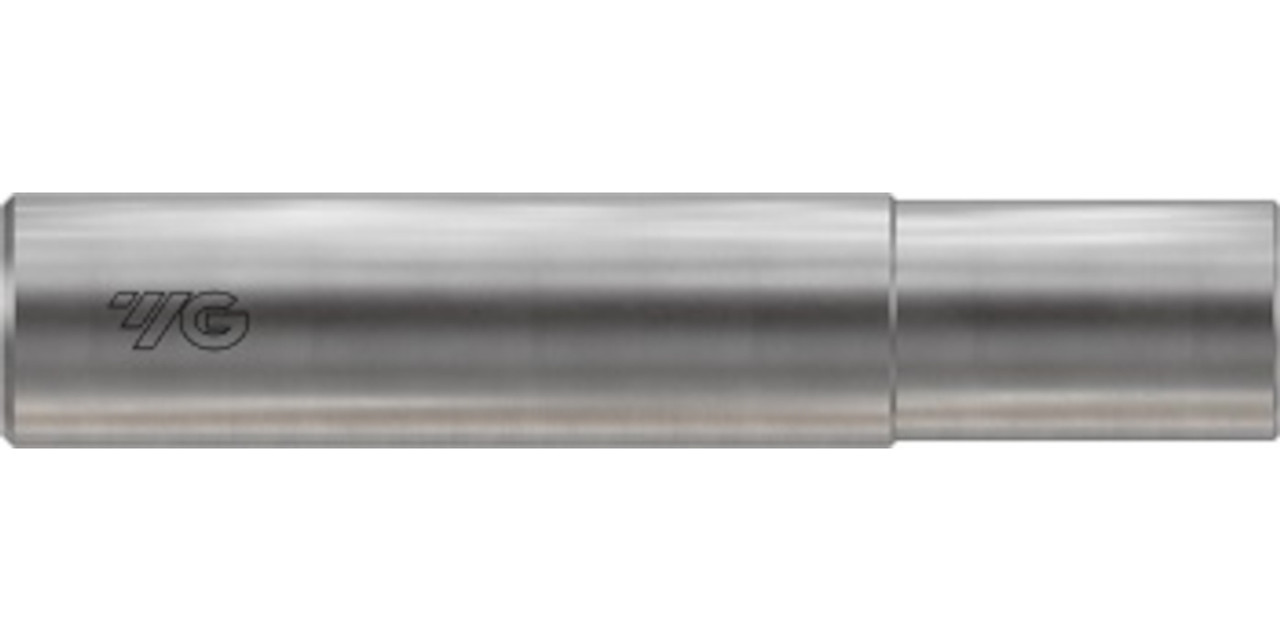

3/8" Long Length i-Smart Carbide Holder, Straight Neck, For Modular Milling Heads, 3/8" Shank, M6 Thread
- ZMC Series: i-Smart Carbide Holders, Straight Neck Type For Screw On Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- Coolant Hole Through The Shank
- Wrench Included With Each Holder
| Specs | ||
| Mill Diameter | 3/8 in. | |
| SD | Shank Diameter | 3/8 in. |
| L | Overall Length | 5-1/8 in. |
| L1 | Neck Length | 2-3/4 in. |
| D | Neck Diameter | 23/64 in. |
| M | Thread Size | M6 |
| Wrench No. | SPIS0810 | |
| Coolant Hole | 5/64 in. | |
Product Videos
Custom Field
Diameter 3/8 in.
Overall Length 5-1/8 in.
Type Carbide Shank, Modular Cutter
Features M6 Threaded Connection
