Product Description
30/32mm Corner Radius i-Xmill Modular Head Holder For Ball and Corner Radius Inserts, M16 Thread

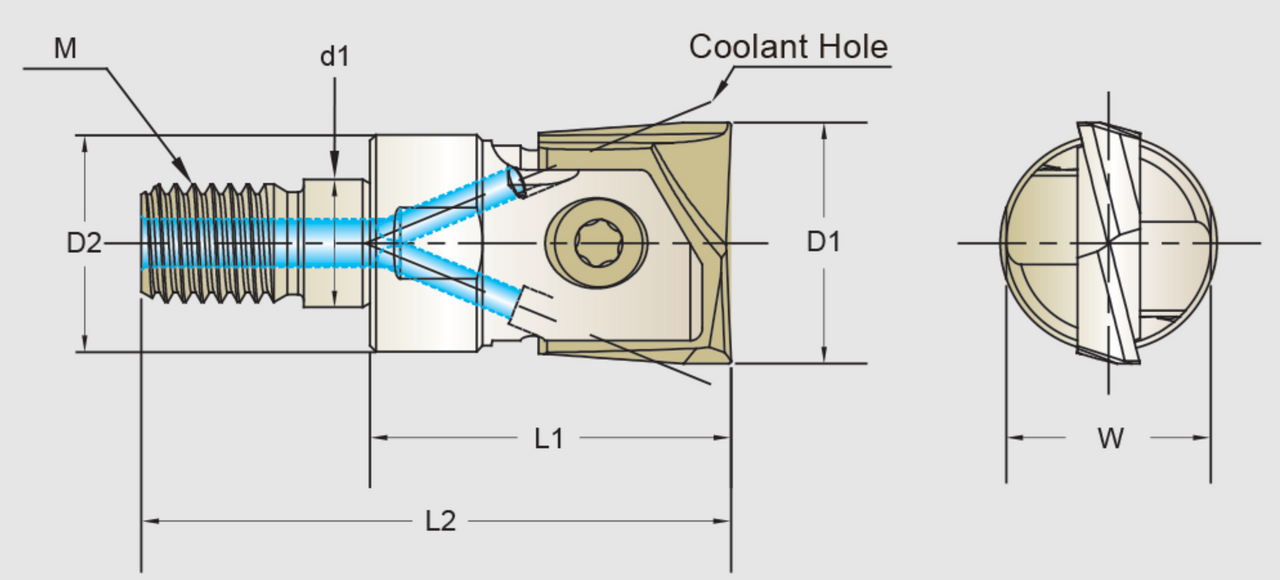

| Specs | ||
| D1 | Mill Diameter | 30/32MM |
| D2 | Neck Diameter | 29MM |
| L1 | Length Below Shank | 43MM |
| L2 | Overall Length | 66MM |
| M | Thread | M16 |
| d1 | Coupling Diameter | 17MM |
Product Videos
Custom Field
Diameter 30/32 MM
Overall Length 66 MM
Type Steel Shank, Modular Cutter
Features M16 Threaded Connection
