Product Description

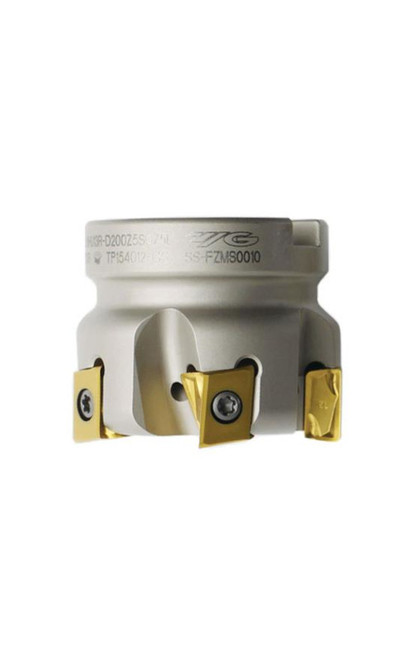

4" LNKU13, 90° Indexable Shoulder Face Mill, 12 Flute, Coolant-Thru
- YG-1 Shoulder Milling Indexable Cutter
- YG-1 Face Mill Style Indexable Cutter
- Coolant Holes Through The Body
- Uses LNKU or LNHU Carbide Inserts
- The ultra-rigid, extra-thick LNKU inserts with 4 cutting edges have:
- Reinforced cutting edge for durability provides predictable, stable production runs
- Long length cutting edge providing for greater depths of cut
- Curved cutting edge to minimize mismatch while step machining
- High positive rake face for optimized chip formation & minimized burr formation
- High helix cutting edge for smooth cutting & lowered cutting force
- Wiper flat cutting edge provides for an excellent surface finish
- 1.25" Bore
- 2.88" Connection Diameter
Product Videos
Custom Field
Diameter 4 in.
Flutes 12
Type Indexable Face Mill
Size LNKU 13
Overall Length 1.969 in.
