Product Description

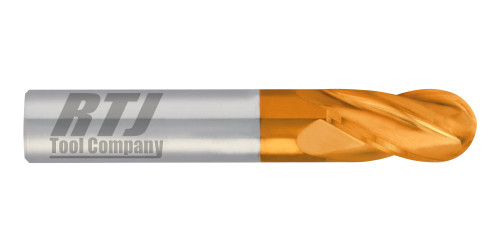

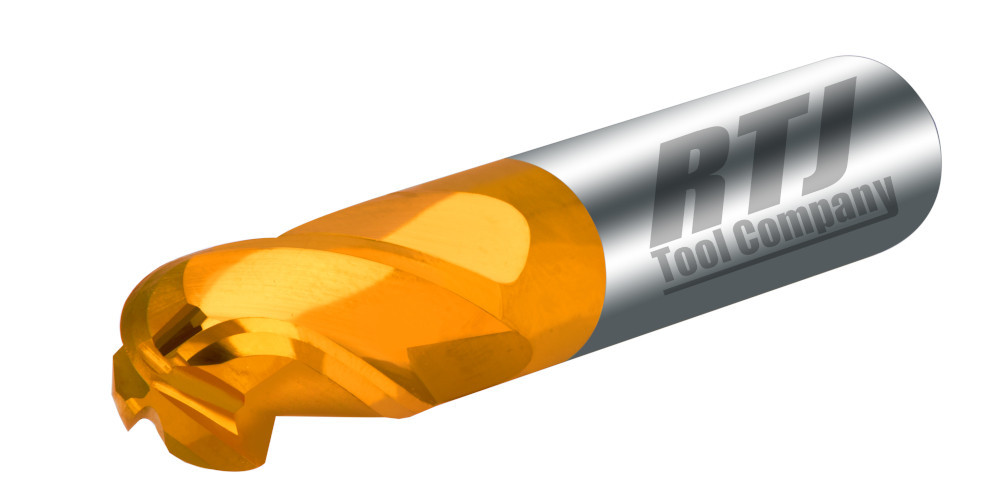

4MM Dia., 4 Flute, 14MM LOC, Ball Nose TiCN Coated Carbide End Mill
4 Flute, Metric, Regular Length, Ball Nose, TiCN Coated Solid Carbide General Purpose Endmill
- Single End
- 30° Helix
- Metric
- Ball End
- Solid Carbide End Mills
- CNC Ground in the USA by HTC Tool-Cutter MFG
| Specs | ||
| D1 | Diameter | 4MM |
| D2 | Shank Diameter | 4MM |
| L2 | Length of Cut | 14MM |
| L1 | Overall Length | 50MM |
| Flutes | 4 | |
| Coating | TiCN Coated | |
Product Videos
Custom Field
Diameter 4 MM
Length of Cut 14 MM
Overall Length 50 MM
Flutes 4 Flutes
Coating TiCN Coated
End Type Ball
Type Metric
