Product Description
5/16" I-Xmill Ball Straight Neck Carbide Holder, Long Length, 1/2" LOC, 5-1/8" OAL
- Equal tool rigidity like solid carbide end mill that makes the stable and high finishing machining with less vibration.
- High finishing machining for the deeper part of mold.
- The tool's life of carbide ball holders is longer than steel holder.
- Shrink fit holding system can be applied.
- Upon request, the worn holder is able to be regenerated.

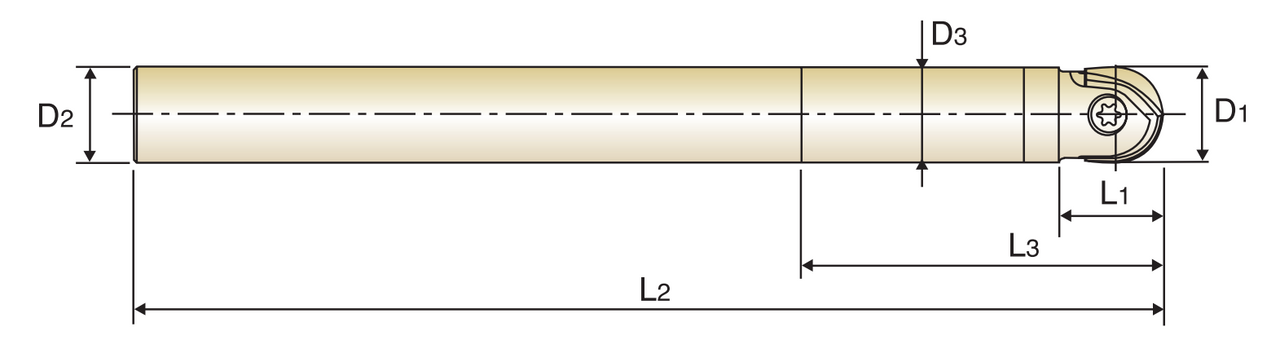

| Specs | ||
| D1 | Mill Diameter | 5/16 in. |
| D2 | Shank Diameter | 5/16 in. |
| D3 | Neck Diameter | 19/64 in. |
| L1 | Length of Cut | 1/2 in. |
| L3 | Length Below Shank | 1-9/16 in. |
| L2 | Overall Length | 5-1/8 in. |
| Length Type | Long | |
| Wrench | TWF07 | |
| Screw | TX0807 | |
Product Videos
Custom Field
Diameter 5/16 in.
Overall Length 5-1/8 in.
Type Carbide Shank, Modular Cutter
stock_level 27
