Product Description

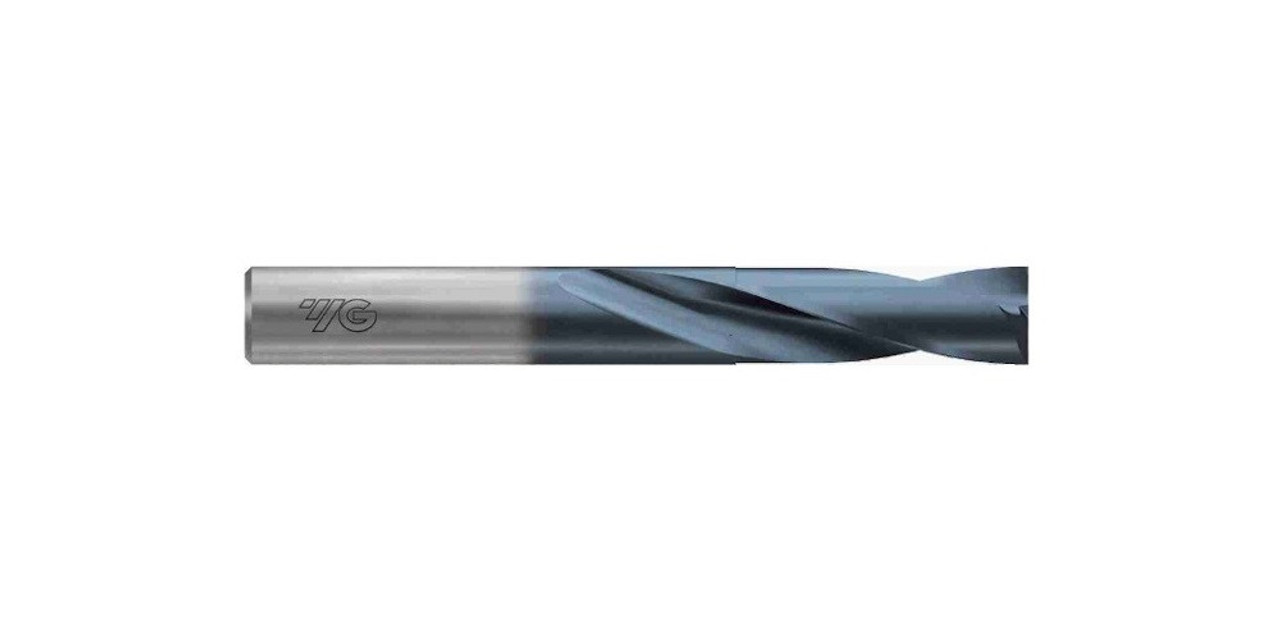

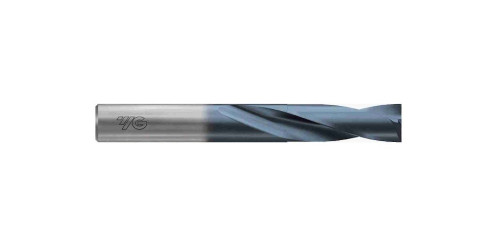

5.3mm YG-1 Carbide Dream Drill Flat Bottom, 6mm Shank, 180° Point, 2XD, X Coated
- Drilling for Steel, Cast Steel, Cast Iron
- Optimized flute shape for excellent chip evacuation
- 180° point angle enables drilling of flat, inclined, and curved surfaces
- Minimized burrs on entrance and exit when drilling thin plates
- 2XD
- Coolant Thru
- High strength cutting edge to improve tool life and versatility drilling

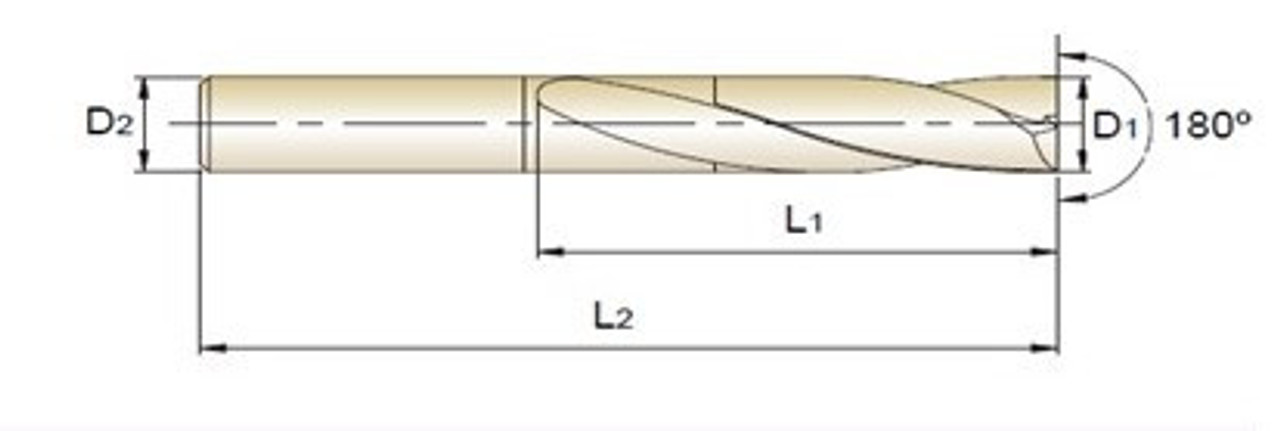

| Specs | ||
| D1 | Diameter | 5.3mm |
| D2 | Shank Diameter | 6mm |
| L1 | Length of Cut | 24mm |
| L2 | Overall Length | 60mm |
| Flutes | 2 | |
| Point Angle | 180° | |
| Coating | X | |
Warranty Information
0Product Videos
Custom Field
Diameter 5.3mm
Length of Cut 24mm
Overall Length 60mm
Flutes 2 Flutes
Coating X Coated
End Type 180° Point
Type 2XD - Stub
Features Coolant Thru
