Product Description

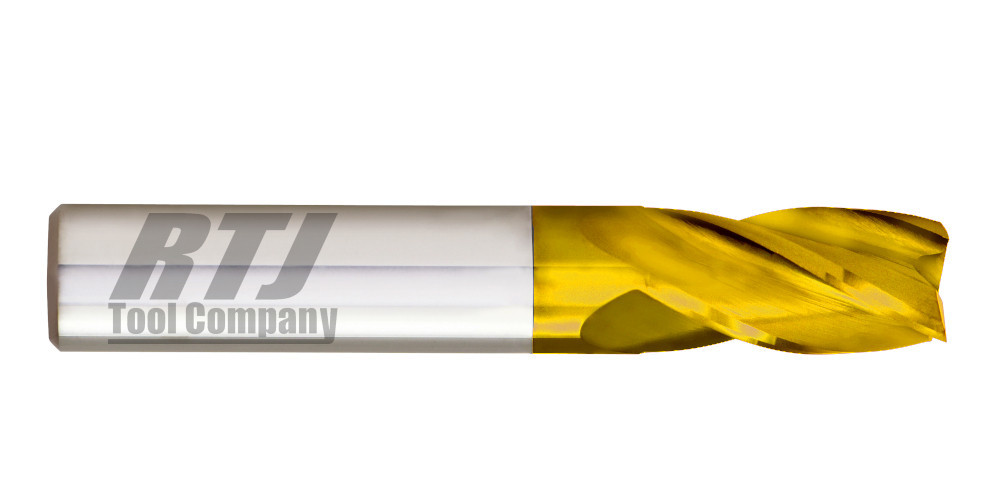

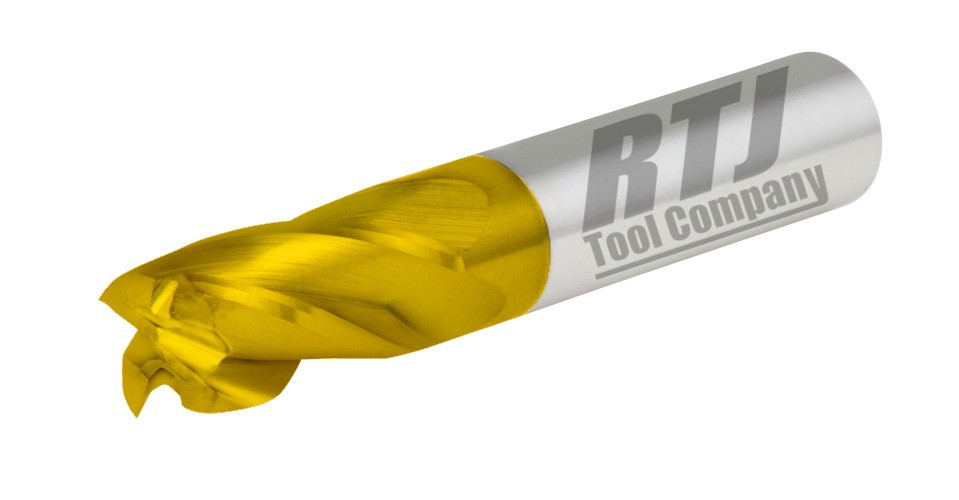

5/64 Dia., 4 Flute, 1/4 LOC, TiN Coated Carbide End Mill
4 Flute, Regular Length, TiN Coated Solid Carbide General Purpose Endmill
- Single End
- 30° Helix
- Center Cutting
- Solid Carbide End Mills
- CNC Ground in the USA by HTC Tool-Cutter MFG
| Specs | ||
| D1 | Diameter | 5/64 in. |
| D2 | Shank Diameter | 1/8 in. |
| L2 | Length of Cut | 1/4 in. |
| L1 | Overall Length | 1 1/2 in. |
| Flutes | 4 | |
| Coating | TiN Coated | |
Product Videos
Custom Field
Diameter 5/64 in.
Length of Cut 1/4 in.
Overall Length 1 1/2 in.
Flutes 4 Flutes
Coating TiN Coated
End Type Square
Type Standard Length
