Product Description

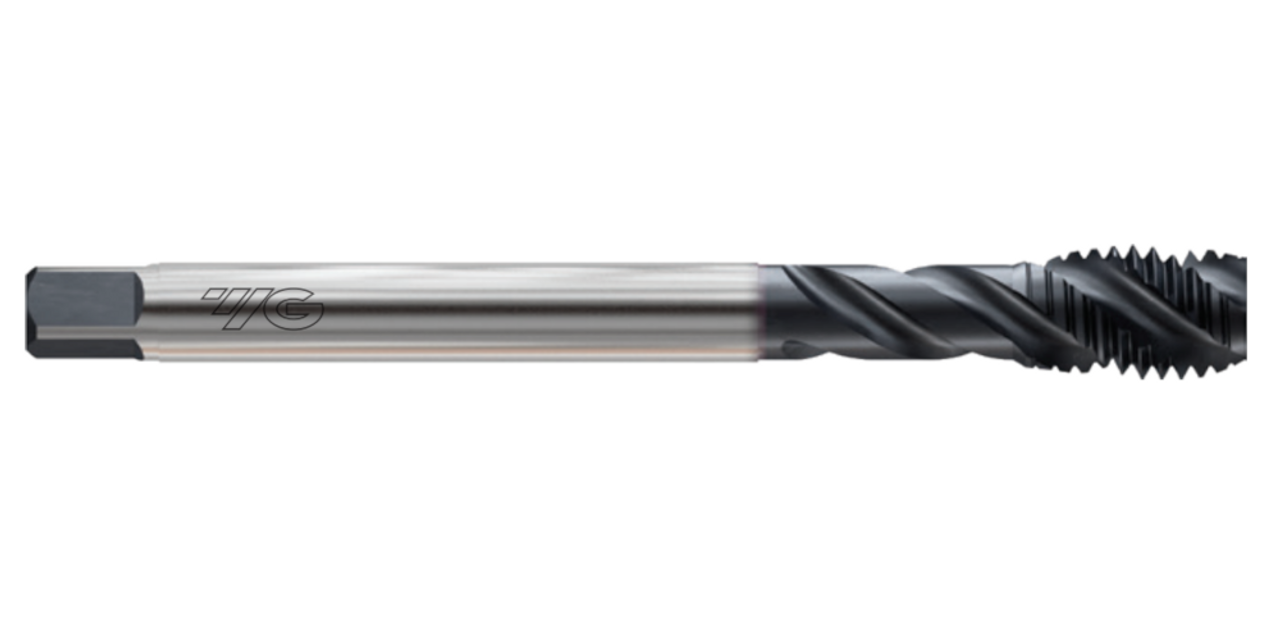

5/8-11 UNC H5 3 Flute High Performance Spiral Fluted Prime Tap For Multi-Purpose, X Coated HSS-PM
HIGH PERFORMANCE, MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Premium cutting edge strength
- X-Coating for high performance, high heat and wear resistance
- HSS-PM Powdered Metal Technology for tough, chip-resistant cutting edge
- Optimized geometry end edge prep to prevent bird nesting, increased chip flow and prevents oversized threads
| Specs | ||
| OD | Thread Size | 5/8-11 |
| Od | Shank Diameter | 0.48" |
| Lt | Thread Length | 0.909" |
| L | Overall Length | 4.33" |
| K | Square Size | 0.36" |
| kl | Square Length | 0.56" |
| Flutes | 3 | |
| Limit | H5 | |
| Chamfer | 2P-3P | |
| Coating | X-Coating | |
Product Videos
Custom Field
Diameter 5/8-11
Length of Cut 0.909 in.
Overall Length 4.33 in.
Flutes 3 Flutes, DIN Length
Coating X Coated
End Type Spiral Flute
Type UNC
Features H5 Limit
