Product Description
5/8-11 UNC H5 3 Flute Spiral Pointed Combo Tap, Coolant Thru, Multi-Purpose TiN Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.

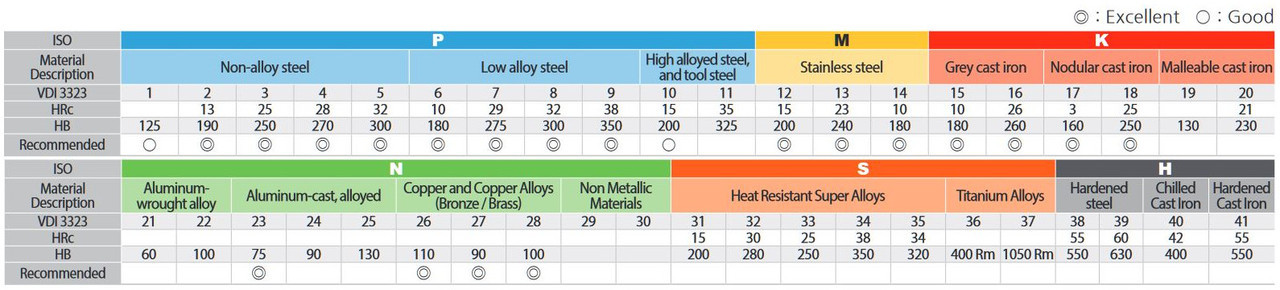

- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
| Specs | ||
| OD | Thread Size | 5/8-11 |
| Od | Shank Diameter | 0.480" |
| Lt | Thread Length | 1.083" |
| L | Overall Length | 3.812" |
| K | Square Size | 0.360" |
| kl | Square Length | 0.562" |
| Flutes | 3 | |
| Limit | H5 | |
| Chamfer | 4P-5P | |
| Coating | TiN | |
Product Videos
Custom Field
Diameter 5/8-11
Length of Cut 1.083 in.
Overall Length 3.812 in.
Flutes 3 Flutes, Thru Coolant
Coating TiN
End Type Spiral Point
Type UNC
Features H5 Limit
