Product Description

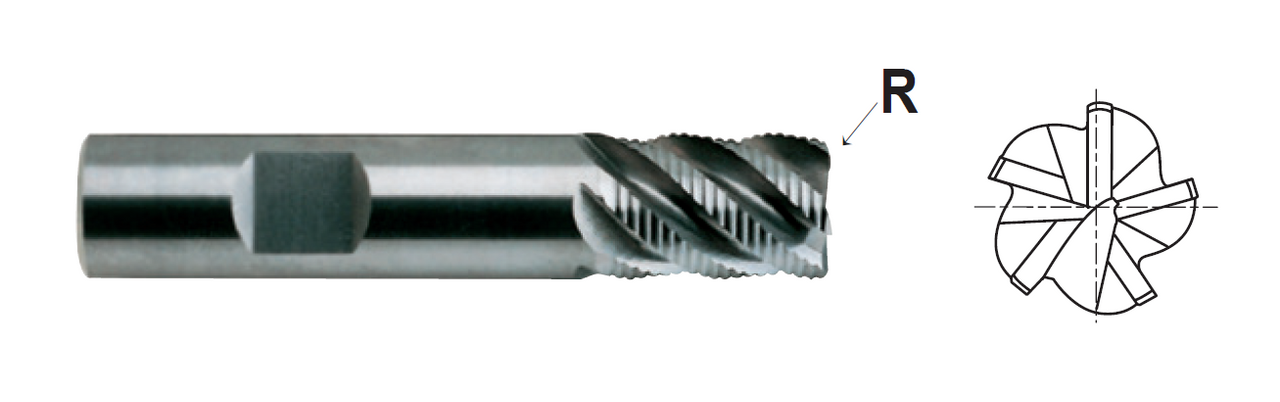

5/8 Dia., 5 Flute, 0.060" Radius, 45° Roughing Carbide End Mill, TiAlN Futura Coated
- 5 flute design gives minimum harmonic vibration.
- Stub tools for minimum deflection and maximum rigidity.
- Ideal for profile milling.
- Not recommended for slotting.
- Solid Carbide.
| Specs | ||
| D1 | Diameter | 5/8 in. |
| D2 | Shank Diameter | 5/8 in. |
| L1 | Length of Cut | 1-5/8 in. |
| L2 | Overall Length | 3-1/2 in. |
| Flutes | 5 | |
| Corner Radius | 0.060 in. | |
| Coating | TiAlN Futura Coated | |
Product Videos
Custom Field
Diameter 5/8 in.
Length of Cut 1-5/8 in.
Overall Length 3-1/2 in.
Flutes 5 Flutes
Coating TiAlN Futura Coated
Helix Degree 45
Type Roughing
End Type Corner Radius 0.060 in.
