Product Description

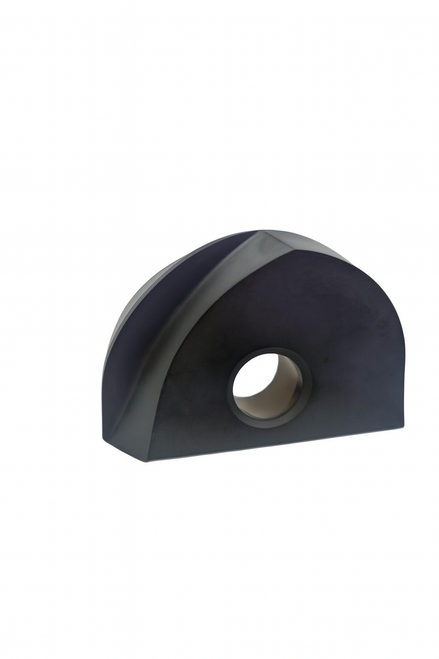

5/8" I-Xmill Ball Carbide Insert For General Material (~HRc50)
- i-Xmill BALL INSERTS
- Three Types of Inserts are available
- For General Purpose (~HRc50)
- For Hardened Material (HRc40~HRc65)
- For Graphite
- Special Geometry and extremely abrasive resistant Coating for Excellent Performance

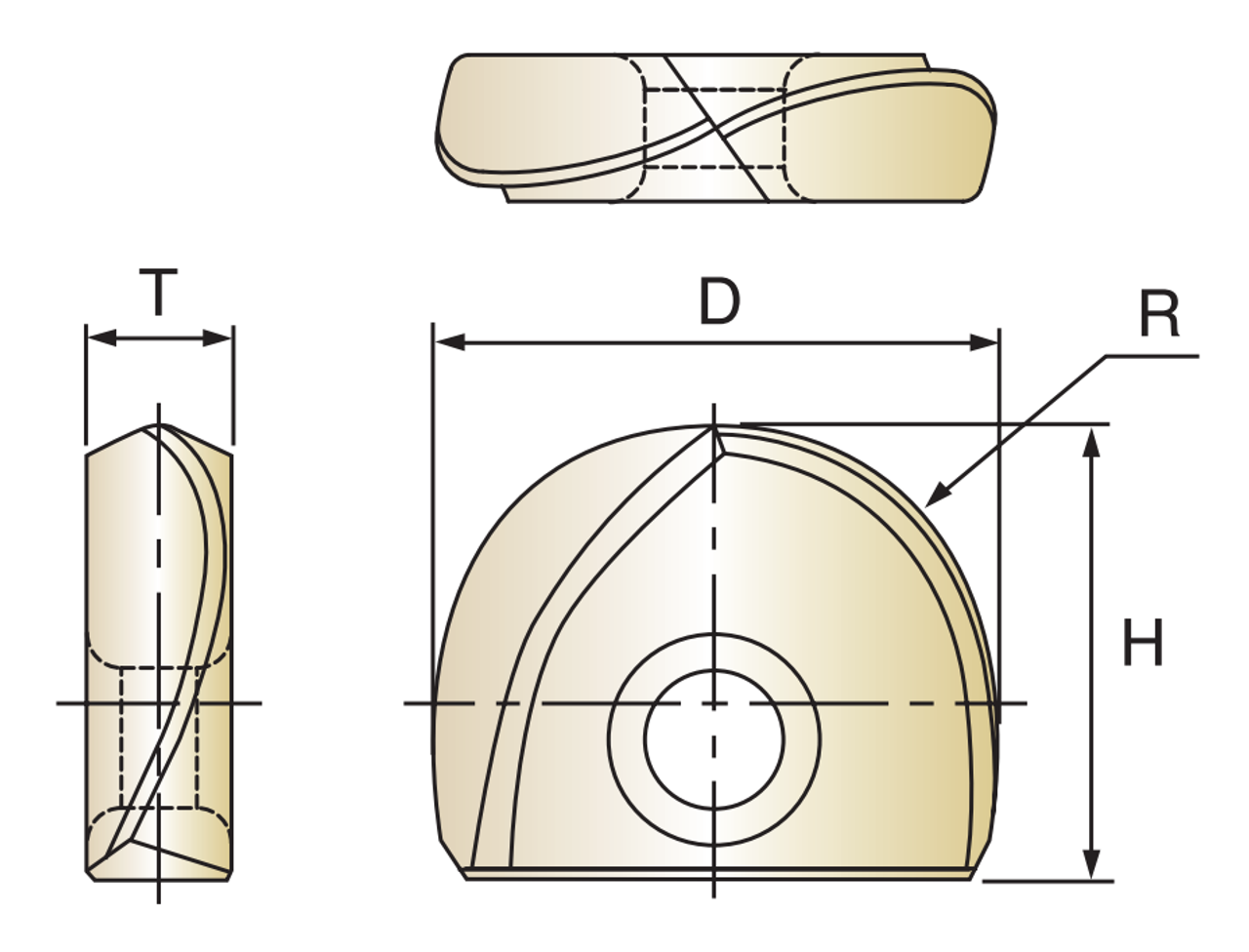

| Specs | ||
| R | Radius of Ball Nose | R5/16 in. |
| D | Mill Diameter | 5/8 in. |
| H | Height | 1/2 in. |
| T | Thickness | .165 in. |
Product Videos
Custom Field
Diameter 5/8 in.
Height 1/2 in.
Type Carbide Shank, Modular Cutter
Thickness .165 in.
