Product Description

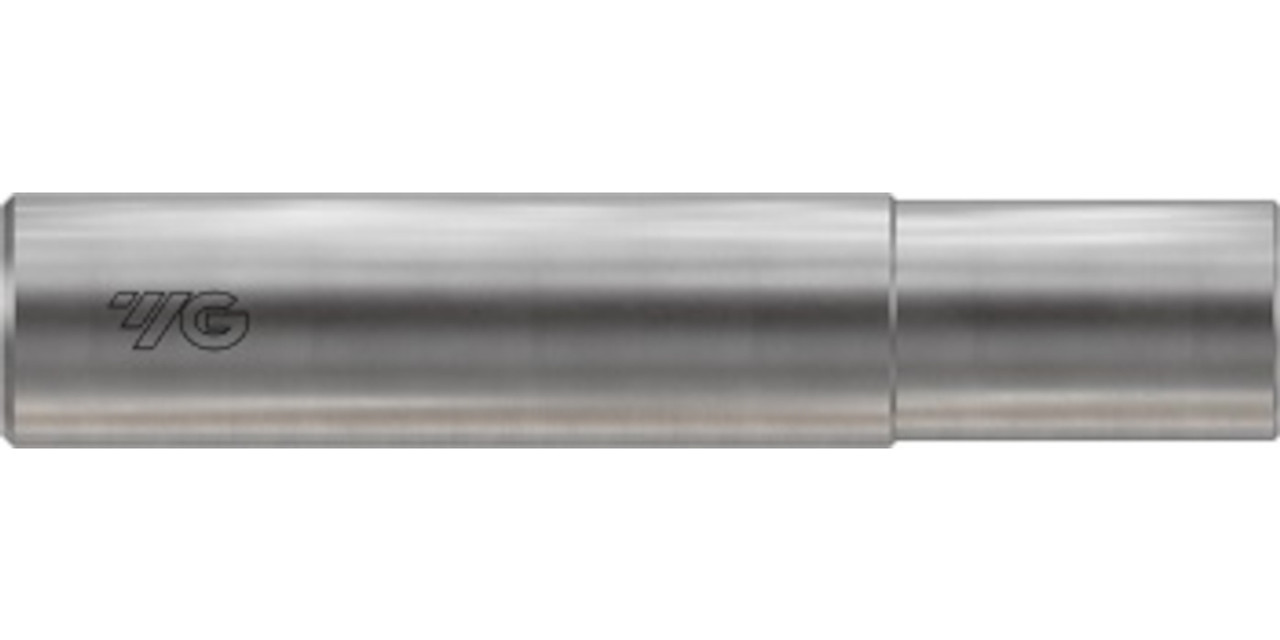

5/8" Regular Length i-Smart Carbide Holder, Straight Neck, For Modular Milling Heads, 5/8" Shank, M8 Thread
- ZMC Series: i-Smart Carbide Holders, Straight Neck Type For Screw On Modular Milling Heads
- Reduce Cost as Compared to Solid Carbide End Mills
- Coolant Hole Through The Shank
- Wrench Included With Each Holder
| Specs | ||
| Mill Diameter | 5/8 in. | |
| SD | Shank Diameter | 5/8 in. |
| L | Overall Length | 5-7/8 in. |
| L1 | Neck Length | 3-5/32 in. |
| D | Neck Diameter | 19/32 in. |
| M | Thread Size | M8 |
| Wrench No. | SPIS1300 | |
| Coolant Hole | 1/8 in. | |
Product Videos
Custom Field
Diameter 5/8 in.
Overall Length 5-7/8 in.
Type Carbide Shank, Modular Cutter
Features M8 Threaded Connection
