Product Description

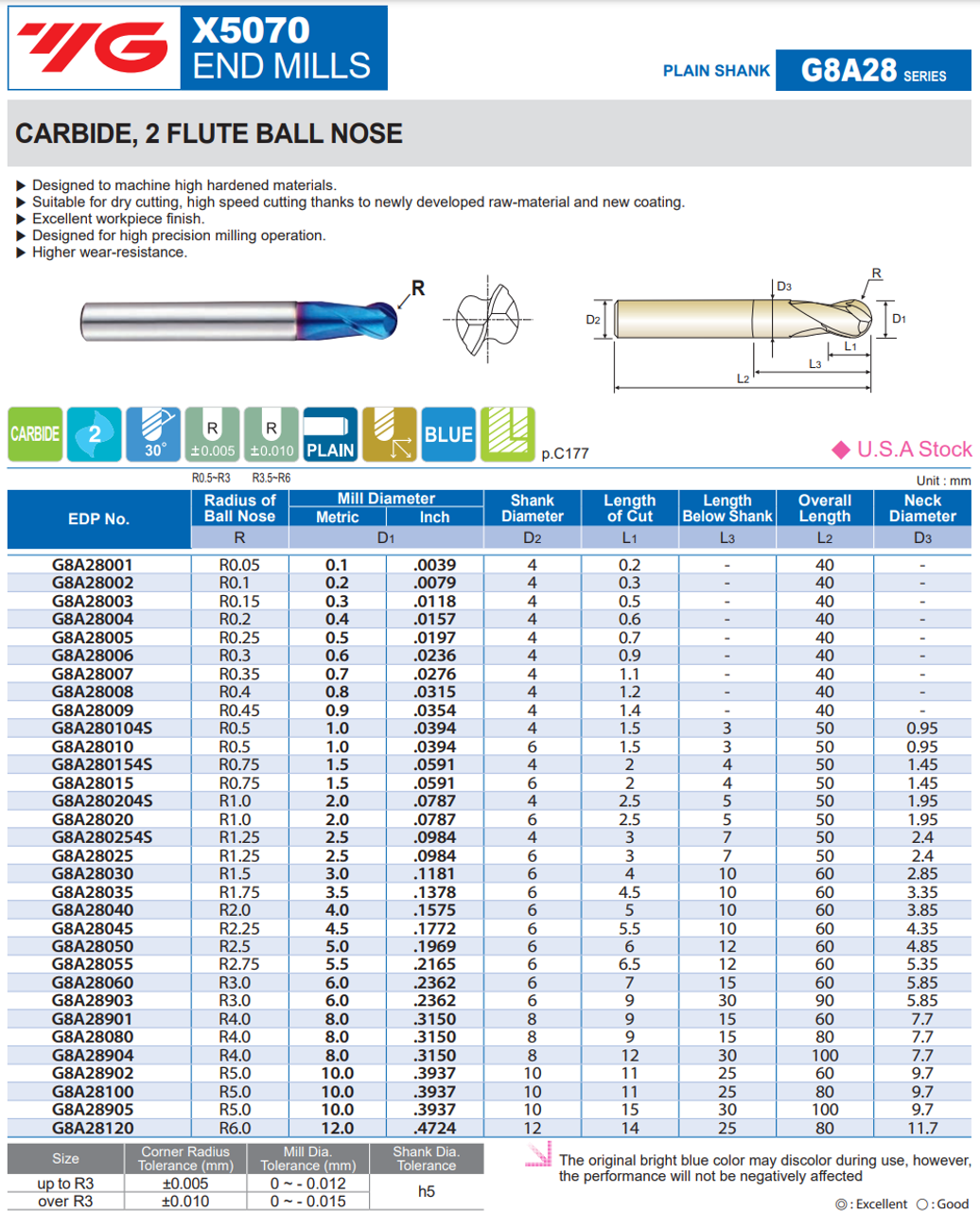

6MM Dia., 2 Flute., 7MM LOC, 6MM Plain Shank, 15MM Length Below Shank, 60MM OAL, Ball Nose Carbide End Mill
Designed to machine high hardened materials.
Suitable for dry cutting, high speed cutting due to newly developed raw-material and new coating.
Excellent workpiece finish.
Designed for high precision milling operation.
Higher wear-resistance.
| Specs | ||
| D1 | Mill Diameter | 6MM |
| D2 | Shank Diameter | 6MM |
| D3 | Neck Diameter | 5.85MM |
| L1 | Length of Cut | 7MM |
| L2 | Overall Length | 60MM |
| L3 | Length Below Shank | 15MM |
| Flutes | 2 | |
| Radius of Ball Nose | 3MM | |
Product Videos
Custom Field
Diameter 6 MM
Length of Cut 7 MM
Shank Diameter 6 MM
Length Below Shank 15 MM
Overall Length 60 MM
Radius of Ball Nose 3 MM
Flutes 2
Coating/Grade Blue Coated
Type High Hardness
Helix Degree 30 Degrees
