Product Description

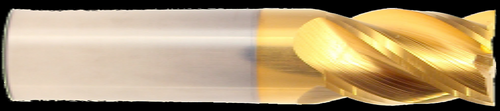

9MM Dia., 3 Flute, 22MM LOC, TiN Coated Carbide End Mill
3 Flute, Metric, Regular Length, TiN Coated Solid Carbide General Purpose Endmill
- Single End
- 30° Helix
- Metric
- Center Cutting
- Solid Carbide End Mills
- CNC Ground in the USA by HTC Tool-Cutter MFG
| Specs | ||
| D1 | Diameter | 9MM |
| D2 | Shank Diameter | 10MM |
| L2 | Length of Cut | 22MM |
| L1 | Overall Length | 70MM |
| Flutes | 3 | |
| Coating | TiN Coated | |
Product Videos
Custom Field
Diameter 9 MM
Length of Cut 22 MM
Overall Length 70 MM
Flutes 3 Flutes
Coating TiN Coated
End Type Square
Type Metric
