Product Description

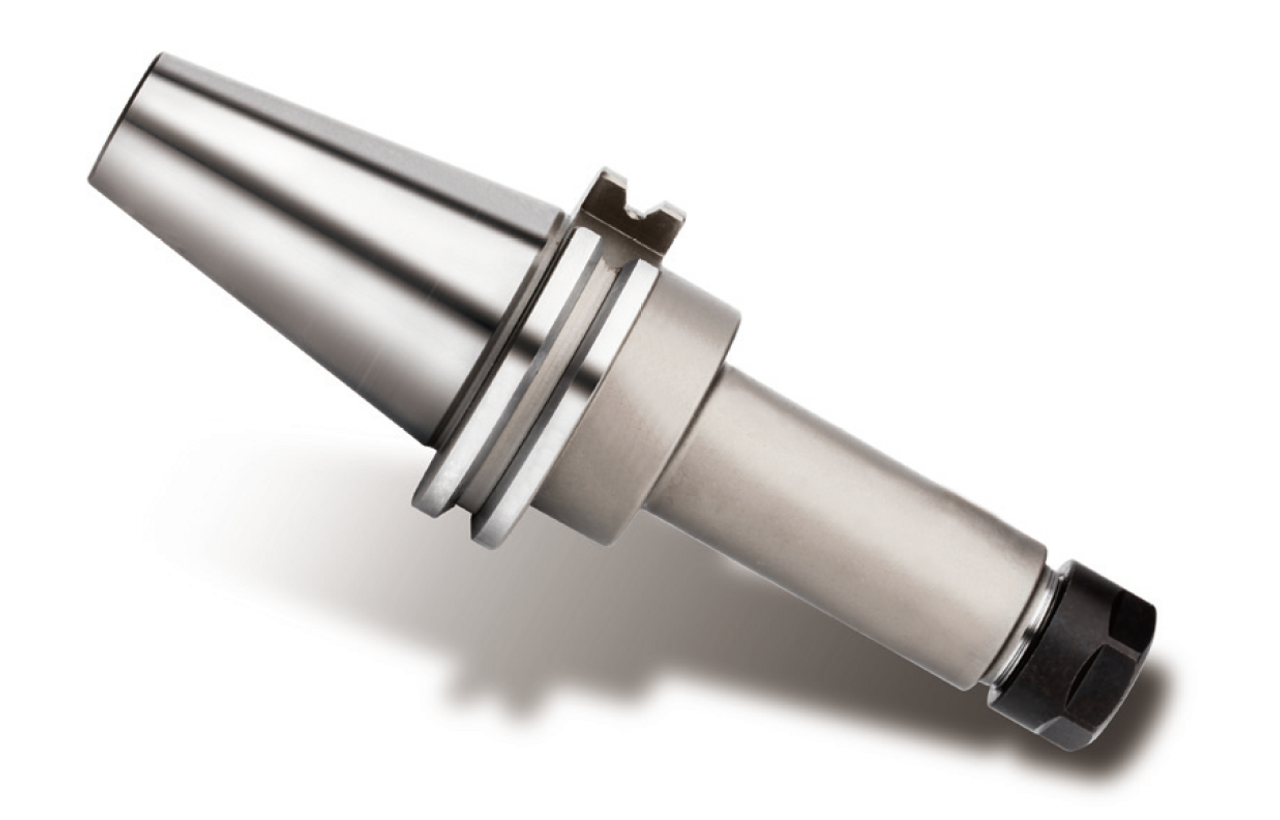

ER16 Collet Chuck, CAT40 Taper Shank, 3" Gage Length, 15,000 RPM Balanced
- For ER16 Series Collets The Entire Clamping Range Is From .039" To .393"
- CAT Taper Shank Per ASME B5.50-2009-CAT
- AT3 Or Better Accuracy On Shank Tapers
- Concentric To 0.0002" T.I.R (At I.D.)
- AD/B Coolant Supply: Coolant Thru The Spindle & DIN Coolant Thru The Flange
- Balanced At G6.3 To 15,000 RPM

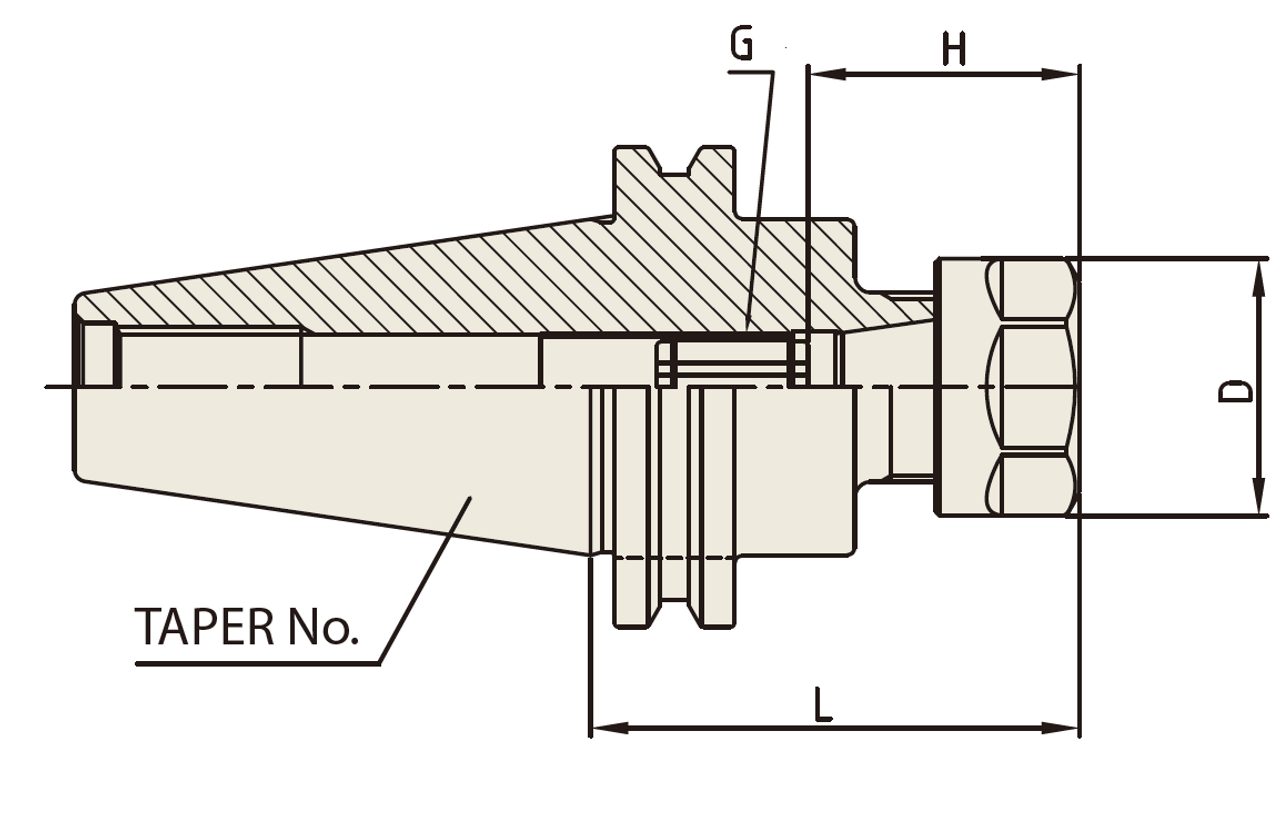

| Specs | ||
| Taper Shank | CAT40 | |
| Collet Series | ER16 | |
| Clamping Range | 0.039"-0.393" | |
| D | Nut Diameter | 1.102" |
| L | Gage Length | 3.00" |
| H | Minimum | 1.008" |
| Maximum | 2.240" | |
| G | Thread | 7/16-18 x 1/2" |
Product Videos
Custom Field
End Type ER16
Type CAT40
Size Standard Length
Features 15,000 RPM
