Product Description

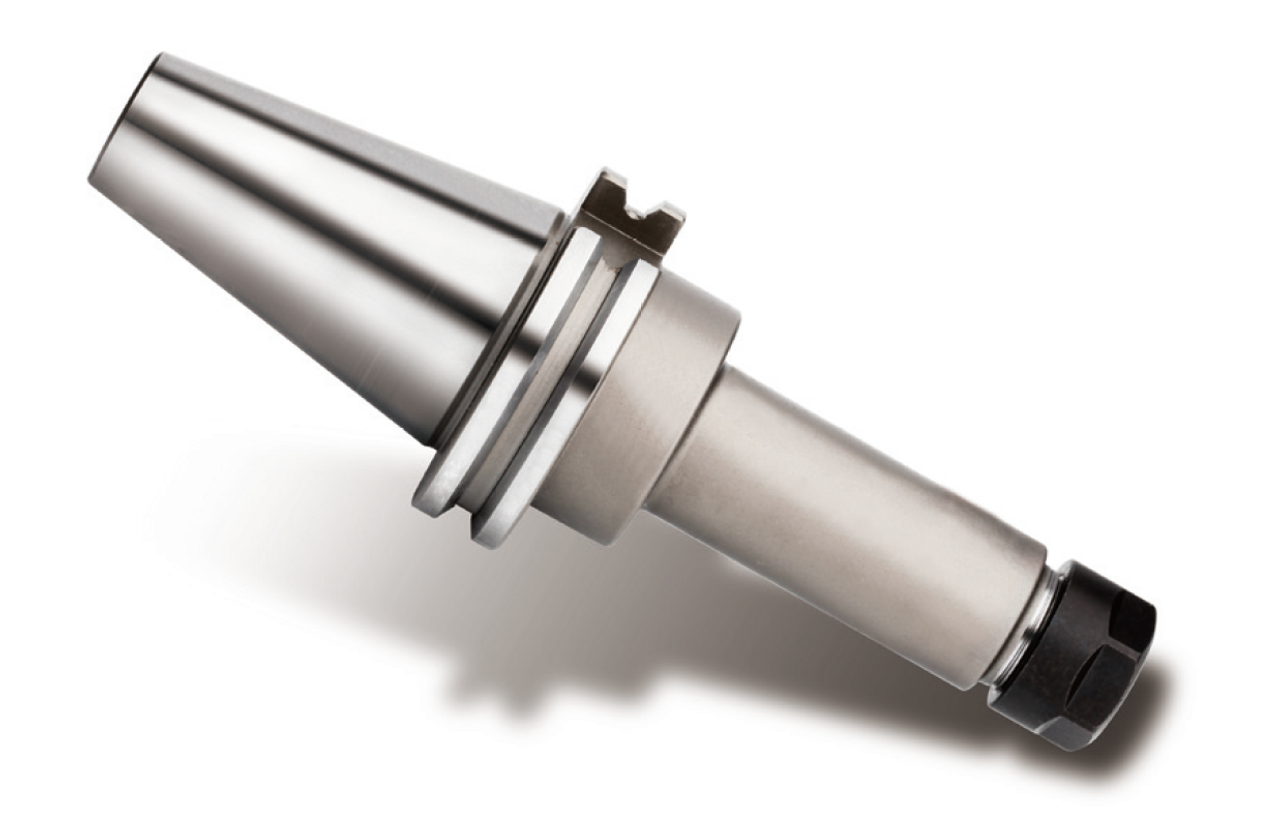

ER11 Collet Chuck, CAT40 Taper Shank, 3" Gage Length, 25,000 RPM Balanced
- For ER11 Series Collets The Entire Clamping Range Is From .019" To .275"
- CAT Taper Shank Per ASME B5.50-2009-CAT
- AT3 Or Better Accuracy On Shank Tapers
- Concentric To 0.0002" T.I.R (At I.D.)
- AD Coolant Supply: Coolant Thru The Spindle & DIN Coolant Thru The Flange
- Balanced At G2.5 To 25,000 RPM

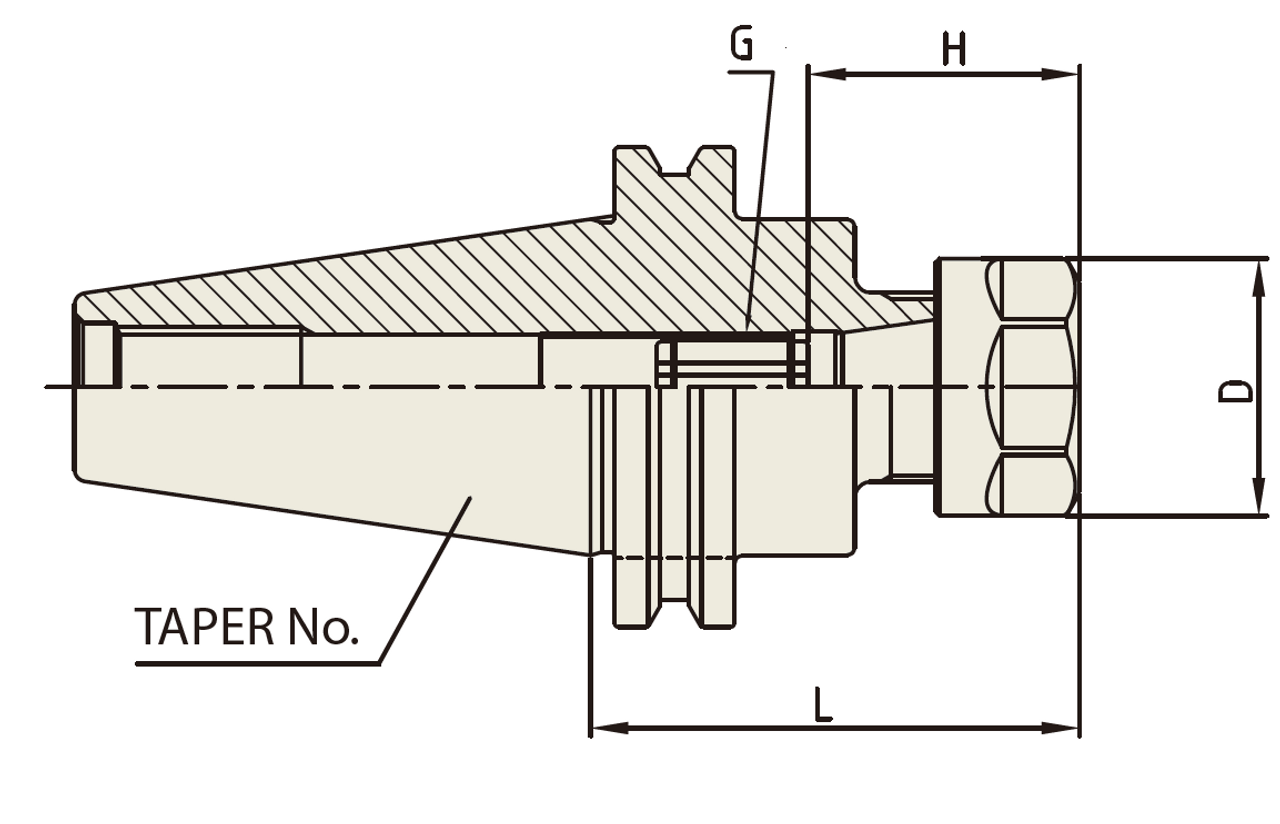

| Specs | ||
| Taper Shank | CAT40 | |
| Collet Series | ER11 | |
| Clamping Range | 0.019"-0.275" | |
| D | Nut Diameter | 0.748" |
| L | Gage Length | 3.00" |
| H | Minimum | 0.654" |
| Maximum | 1.177" | |
| G | Thread | 5/16-18 x 1/2" |
Product Videos
Custom Field
End Type ER11
Type CAT40
Size Standard Length
Features 25,000 RPM
