Product Description

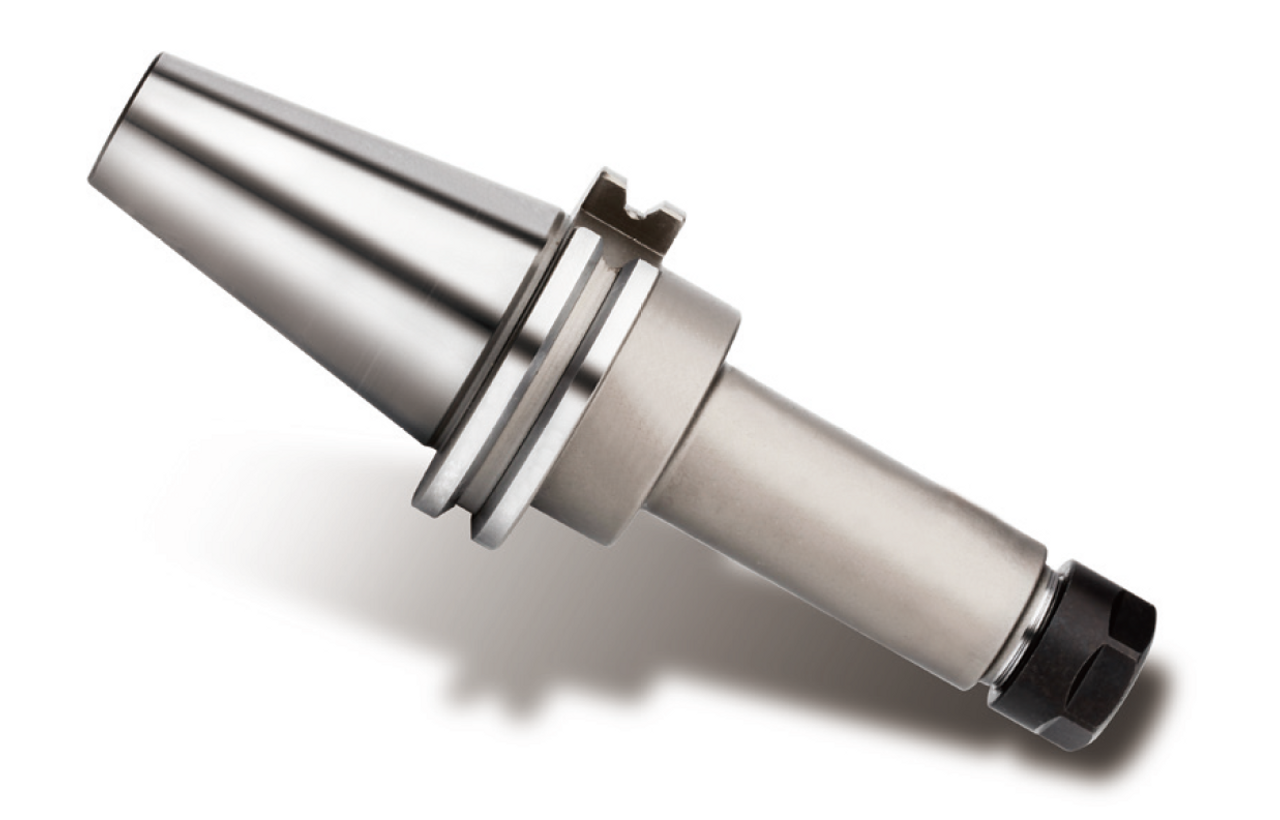

ER20 Collet Chuck, CAT40 Taper Shank, 2.20 Gage Length, 25,000 RPM Balanced
- For ER20 Series Collets The Entire Clamping Range Is From .039" To .511"
- CAT Taper Shank Per ASME B5.50-2009-CAT
- AT3 Or Better Accuracy On Shank Tapers
- Concentric To 0.0002" T.I.R (At I.D.)
- AD Coolant Supply: Coolant Thru The Spindle & DIN Coolant Thru The Flange
- Balanced At G2.5 To 25,000 RPM

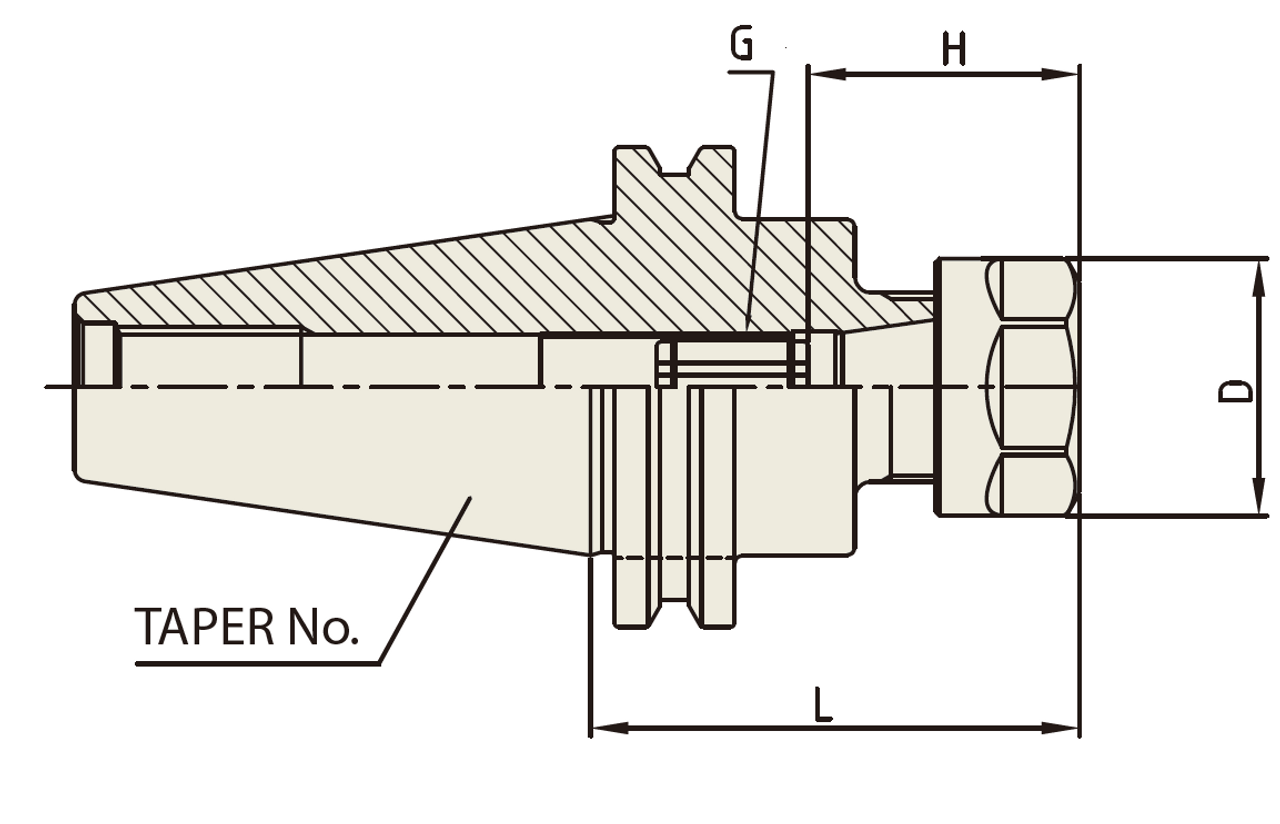

| Specs | ||
| Taper Shank | CAT40 | |
| Collet Series | ER20 | |
| Clamping Range | 0.039"-0.511" | |
| D | Nut Diameter | 1.339" |
| L | Gage Length | 2.20" |
| H | Minimum | 1.220" |
| Maximum | 2.315" | |
| G | Thread | 9/16-16 x 1/2" |
Product Videos
Custom Field
End Type ER20
Type CAT40
Size Stub Length
Features 25,000 RPM
