Product Description

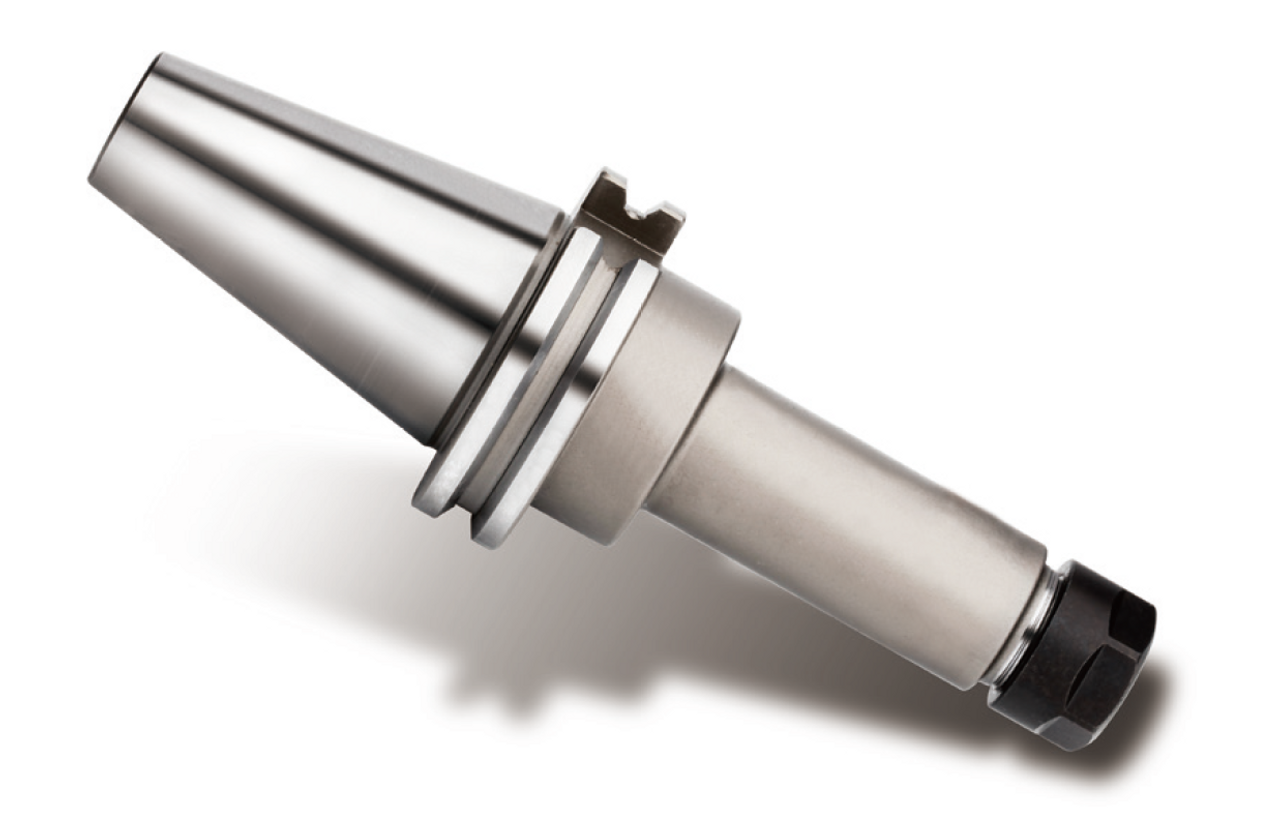

ER40 Collet Chuck, CAT40 Taper Shank, 4" Gage Length, 15,000 RPM Balanced
- For ER40 Series Collets The Entire Clamping Range Is From .118" To 1.024"
- CAT Taper Shank Per ASME B5.50-2009-CAT
- AT3 Or Better Accuracy On Shank Tapers
- Concentric To 0.0002" T.I.R (At I.D.)
- AD/B Coolant Supply: Coolant Thru The Spindle & DIN Coolant Thru The Flange
- Balanced At G6.3 To 15,000 RPM
| Specs | ||
| Taper Shank | CAT40 | |
| Collet Series | ER40 | |
| Clamping Range | 0.118"-1.024" | |
| D | Nut Diameter | 2.480" |
| L | Gage Length | 4.00" |
| H | Minimum | 2.283" |
| Maximum | 3.634" | |
| G | Thread | 1-1/8-16 x 1/2" |
Product Videos
Custom Field
End Type ER40
Type CAT40
Size Standard Length
Features 15,000 RPM
