Product Description
M10 x 1 D11 3 Flute Spiral Fluted Combo Tap For Multi-Purpose TiCN Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading

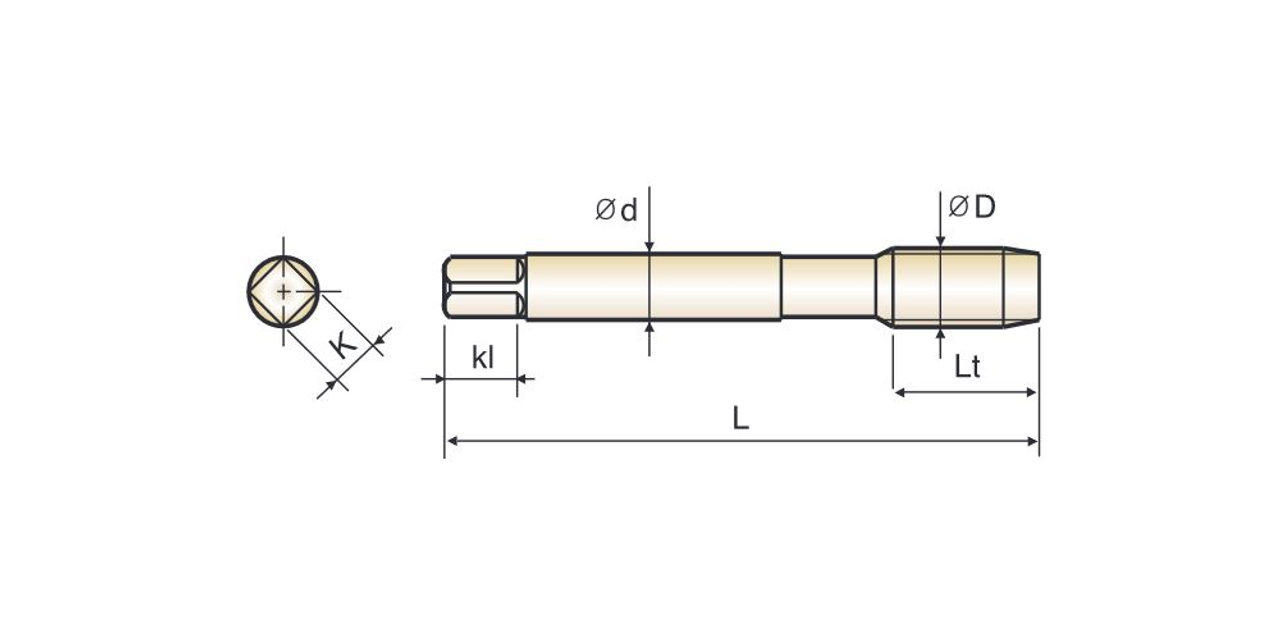

| Specs | ||
| OD | Thread Size | M10 x 1 |
| Od | Shank Diameter | 0.381" |
| Lt | Thread Length | 0.433" |
| L | Overall Length | 2.94" |
| K | Square Size | 0.286" |
| kl | Square Length | 0.438" |
| Flutes | 3 | |
| Limit | D11 | |
| Chamfer | 2P-3P | |
| Coating | TiCN | |
Product Videos
Custom Field
Diameter M10 x 1
Length of Cut 0.433 in.
Overall Length 2.94 in.
Flutes 3 Flutes
Coating TiCN
End Type Spiral Flute
Type Metric
Features D11 Limit
