Product Description
M12 x 1.25 D5 3 Flute Spiral Pointed Combo Tap For Stainless Steel TiCN Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading

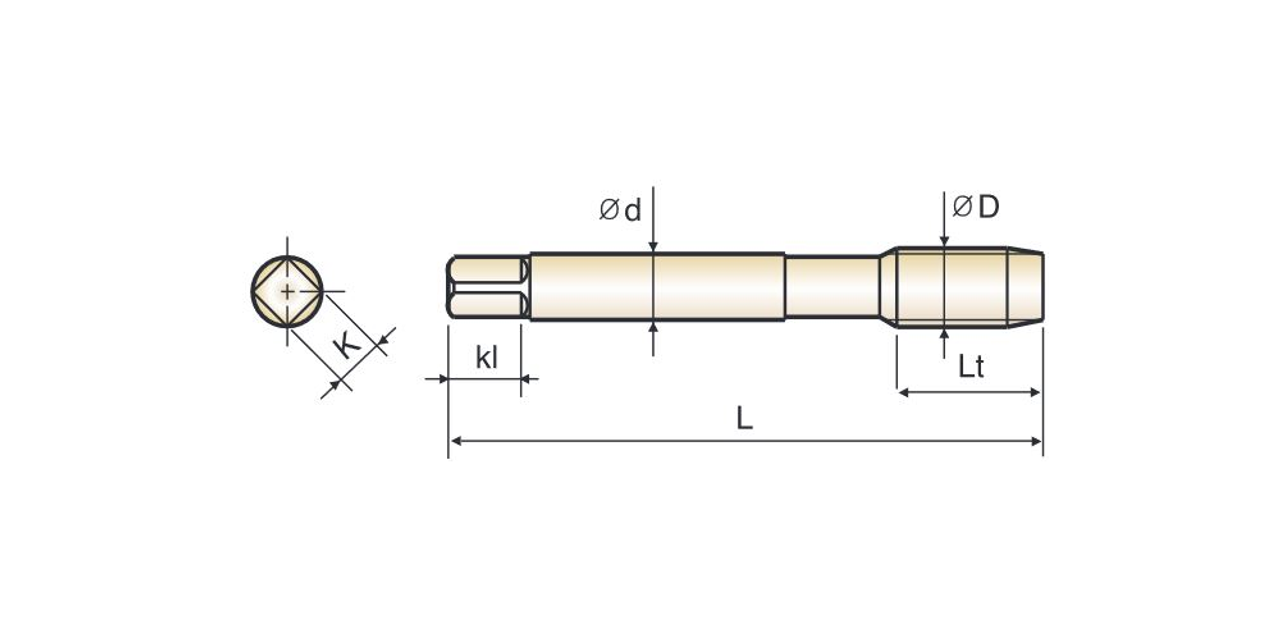

| Specs | ||
| OD | Thread Size | M12 x 1.25 |
| Od | Shank Diameter | 0.367" |
| Lt | Thread Length | 0.984" |
| L | Overall Length | 3.375" |
| K | Square Size | 0.275" |
| kl | Square Length | 0.438" |
| Flutes | 3 | |
| Limit | D3 | |
| Chamfer | 4P-5P | |
| Coating | TiCN | |
Product Videos
Custom Field
Diameter M12 x 1.25
Length of Cut 0.984 in.
Overall Length 3.375 in.
Flutes 3 Flutes
Coating TiCN
End Type Spiral Point
Type Metric
Features D5 Limit
