Product Description
M14 x 2.0 D7 3 Flute Spiral Fluted Combo Tap, Short Chamfer, Multi-Purpose TiCN Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.

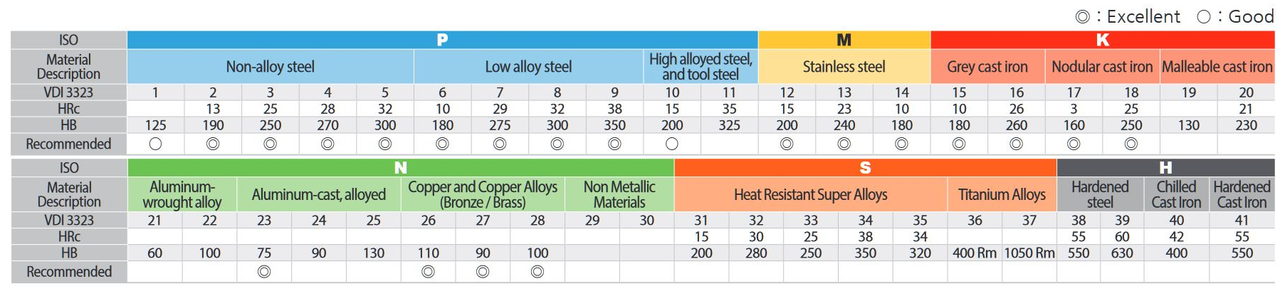

- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
| Specs | ||
| OD | Thread Size | M14 x 2.0 |
| Od | Shank Diameter | 0.429" |
| Lt | Thread Length | 0.709" |
| L | Overall Length | 3.594" |
| K | Square Size | 0.322" |
| kl | Square Length | 0.500" |
| Flutes | 3 | |
| Limit | D7 | |
| Chamfer | 1P-2P | |
| Coating | TiCN | |
Product Videos
Custom Field
Diameter M14 x 2.0
Length of Cut 0.709 in.
Overall Length 3.594 in.
Flutes 3 Flutes, Short Chamfer
Coating TiCN
End Type Spiral Flute
Type Metric
Features D7 Limit
