Product Description

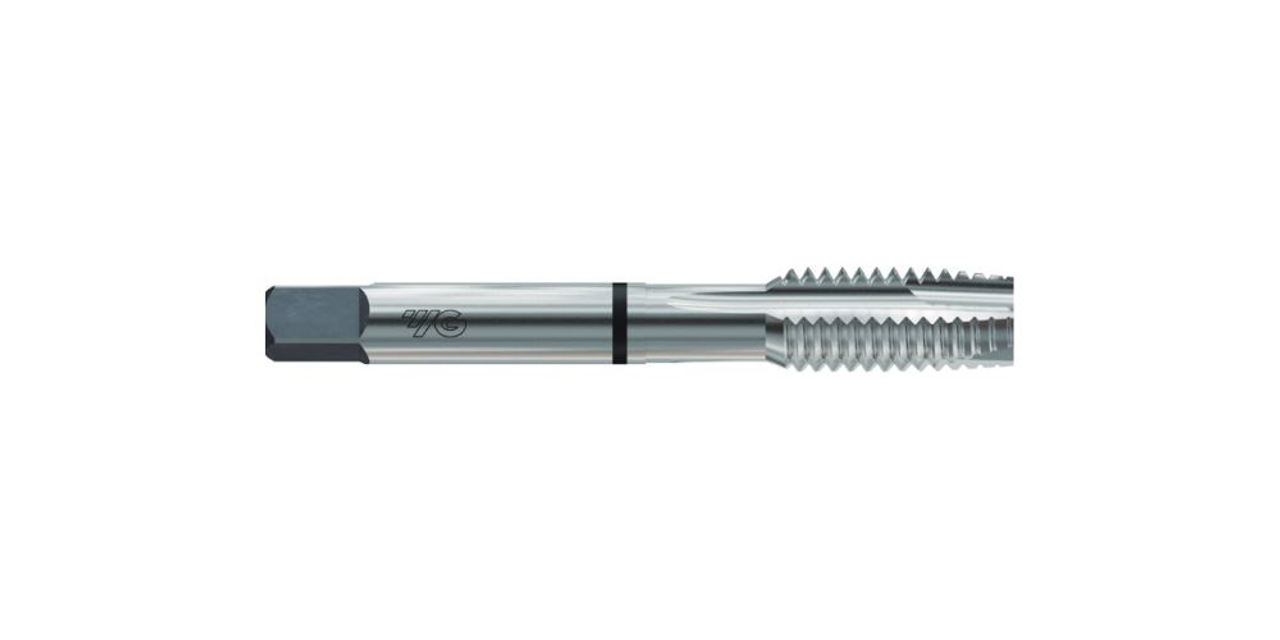

M18 x 2.5 D7 4 Flute Spiral Pointed Combo Tap For Multi-Purpose Uncoated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
| Specs | ||
| OD | Thread Size | M18 x 2.5 |
| Od | Shank Diameter | 0.542" |
| Lt | Thread Length | 1.083" |
| L | Overall Length | 4.03" |
| K | Square Size | 0.406" |
| kl | Square Length | 0.625" |
| Flutes | 4 | |
| Limit | D7 | |
| Chamfer | 4P-5P | |
| Coating | Uncoated | |
Product Videos
Custom Field
Diameter M18 x 2.5
Length of Cut 1.083 in.
Overall Length 4.03 in.
Flutes 4 Flutes
Coating Uncoated
End Type Spiral Point
Type Metric
Features D7 Limit
