Product Description

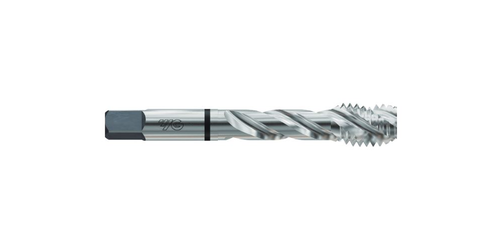

M20 x 1.5 D6 4 Flute Spiral Fluted Combo Tap For Multi-Purpose Uncoated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading

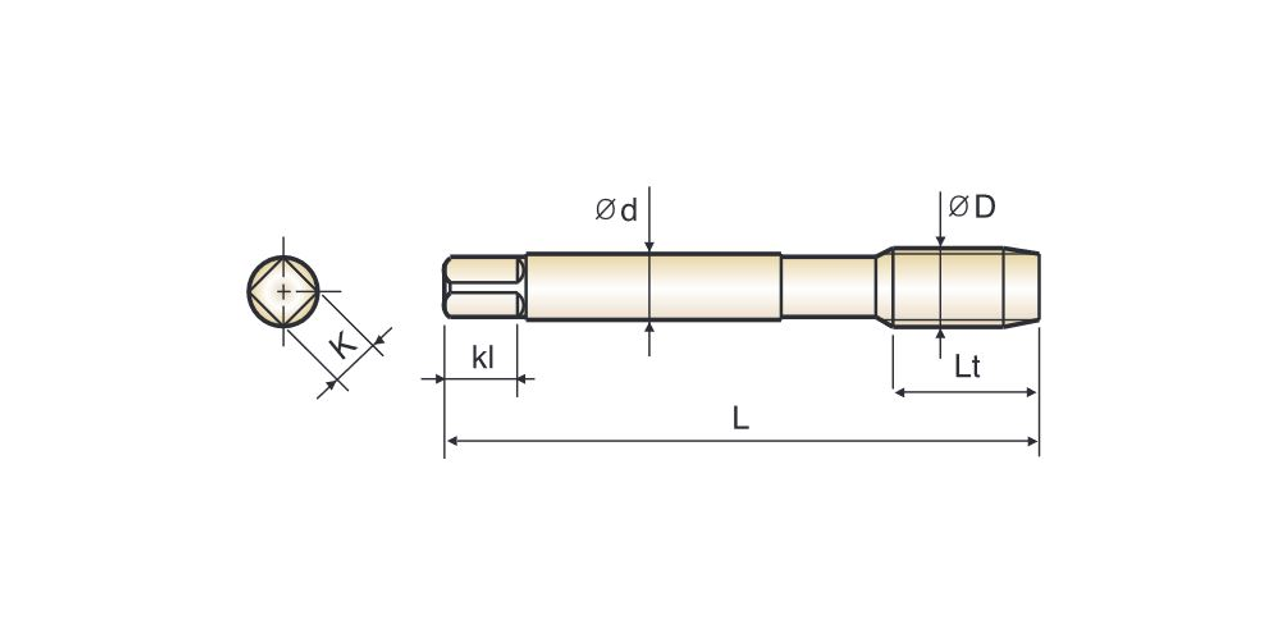

| Specs | ||
| OD | Thread Size | M20 x 1.5 |
| Od | Shank Diameter | 0.652" |
| Lt | Thread Length | 0.551" |
| L | Overall Length | 4.47" |
| K | Square Size | 0.489" |
| kl | Square Length | 0.688" |
| Flutes | 4 | |
| Limit | D6 | |
| Chamfer | 2P-3P | |
| Coating | Uncoated | |
Product Videos
Custom Field
Diameter M20 x 1.5
Length of Cut 0.551 in.
Overall Length 4.47 in.
Flutes 4 Flutes
Coating Uncoated
End Type Spiral Flute
Type Metric
Features D6 Limit
