Product Description

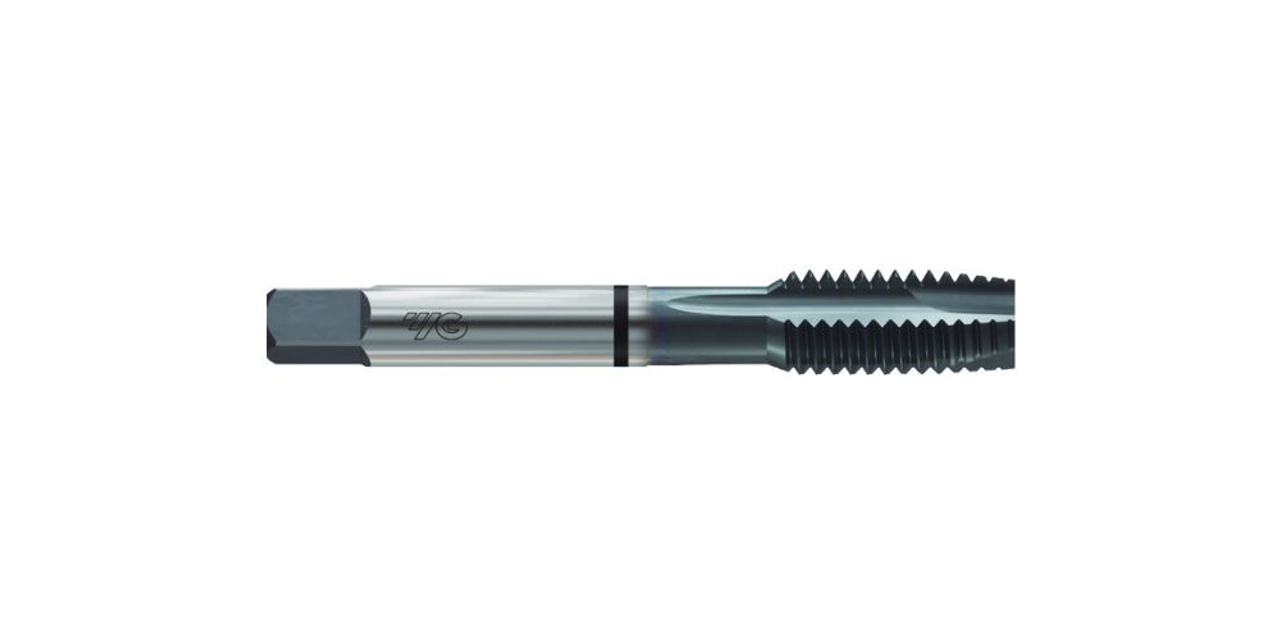

M8 x 1.25 D11 3 Flute Spiral Pointed Combo Tap For Multi-Purpose TiCN Coated HSS-EX
MULTIPURPOSE TAPPING IN VARIOUS DUCTILE MATERIALS
Combo Tap's geometry is designed to provide smooth chip evacuation resulting in uninterrupted manufacturing. Guaranteed process reliability even in less rigid machining conditions.
- For Steels, Stainless Steels, Cast Iron and Non-Ferrous Materials
- Prevents over & under feeding by its optimized flank geometry
- Constant threading quality preventing oversized threading
| Specs | ||
| OD | Thread Size | M8 x 1.25 |
| Od | Shank Diameter | 0.318" |
| Lt | Thread Length | 0.669" |
| L | Overall Length | 2.72" |
| K | Square Size | 0.238" |
| kl | Square Length | 0.375" |
| Flutes | 3 | |
| Limit | D11 | |
| Chamfer | 4P-5P | |
| Coating | TiCN | |
Product Videos
Custom Field
Diameter M8 x 1.25
Length of Cut 0.669 in.
Overall Length 2.72 in.
Flutes 3 Flutes
Coating TiCN
End Type Spiral Point
Type Metric
Features D11 Limit
